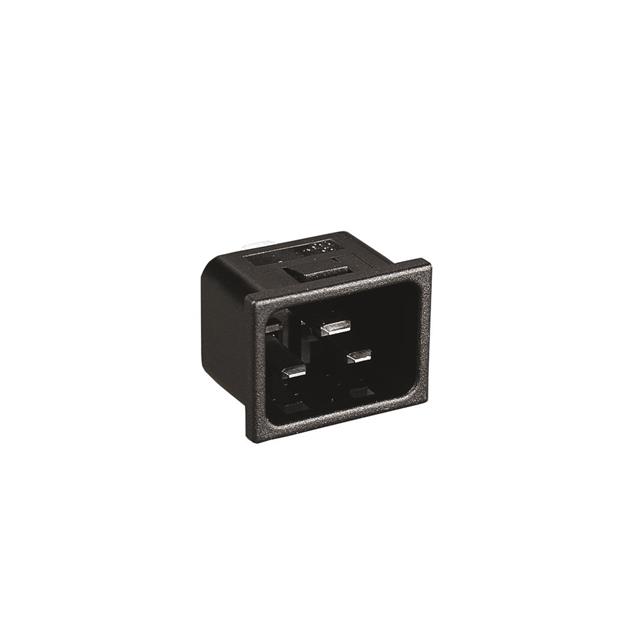

PX0598/15/48

Active

BULGIN LIMITED

CONN POWER M 3 POS SOLDER LUG ST PANEL MOUNT 3 TERMINAL 1 PORT BULK

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONN POWER M 3 POS SOLDER LUG ST PANEL MOUNT 3 TERMINAL 1 PORT BULK

Technical Specifications

Parameters and characteristics for this part

Specification	PX0598/15/48

Accomodates a Fuse	False
Approval Agency	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C20
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	16 A
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	32.3 mm
Panel Cutout Dimensions [y]	24.3 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Connector Type	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Filter Type	Termination	Termination	Termination	Panel Thickness [custom]	Panel Thickness [custom]	Mounting Type	Connector Style	Material Flammability Rating	Panel Thickness	Panel Thickness
BULGIN LIMITED PX0598/15/63	16 A	250 VAC	Male Blades Receptacle	CSA ENEC UL VDE	32.3 mm	24.3 mm	Unfiltered - Commercial	0.25 in	6.3 mm	Quick Connect	0.059 in	1.5 mm	Panel Mount Snap-In	IEC 320-C20	UL94 V-0
BULGIN LIMITED PX0598/30/63	16 A	250 VAC	Male Blades Receptacle	CSA ENEC UL VDE	32.3 mm	24.3 mm	Unfiltered - Commercial	0.25 in	6.3 mm	Quick Connect			Panel Mount Snap-In	IEC 320-C20	UL94 V-0	3 mm	0.118 in
BULGIN LIMITED PX0598/15/48	16 A	250 VAC	Male Blades Receptacle	CSA ENEC UL VDE	32.3 mm	24.3 mm	Unfiltered - Commercial		0.189 " 4.8 mm	Quick Connect	0.059 in	1.5 mm	Panel Mount Snap-In	IEC 320-C20	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.42
Newark	Each	1	$ 4.63

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C20 Panel Mount, Snap-In
