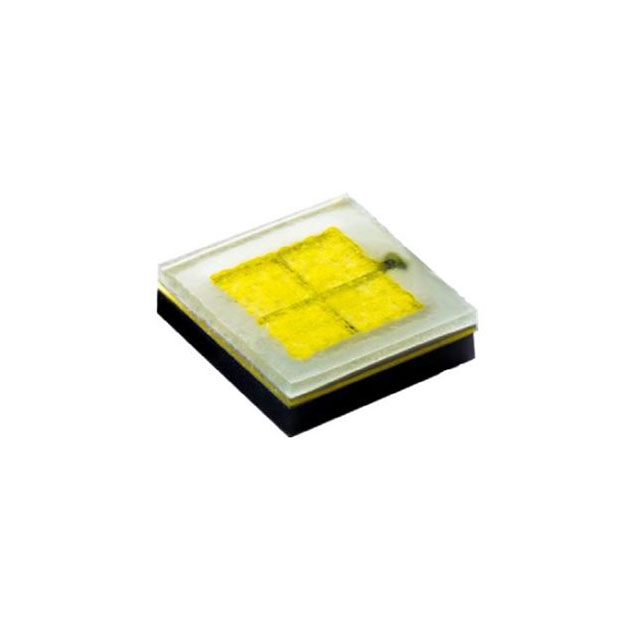

XHP35B-H0-0000-0D0ZA235H

Active

Cree LED

LED XLAMP WARM WHT 3500K 1414

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XHP35B-H0-0000-0D0ZA235H

Active

Cree LED

LED XLAMP WARM WHT 3500K 1414

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XHP35B-H0-0000-0D0ZA235H

CCT (K)	3500 K
Color	White, Warm
CRI (Color Rendering Index)	95
Current - Max [Max]	1.5 A
Current - Test	350 mA
Flux @ 85°C, Current - Test	343 lm
Flux @ 85°C, Current - Test [Max]	355 lm
Flux @ 85°C, Current - Test [Min]	330 lm
Height - Seated (Max) [Max] [z]	1.13 mm
Height - Seated (Max) [Max] [z]	0.044 "
Lumens/Watt @ Current - Test	88 lm/W
Mounting Type	Surface Mount
Package / Case	3535 Metric
Package / Case	1414
Size / Dimension [x]	3.45 mm
Size / Dimension [x]	0.136 in
Size / Dimension [y]	0.136 in
Size / Dimension [y]	3.45 mm
Supplier Device Package	1414
Thermal Resistance of Package [custom]	0.7 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	11.2 V

XHP35B Series

...

Part	Package / Case	Package / Case	Supplier Device Package	Color	Lumens/Watt @ Current - Test	Current - Max [Max]	CCT (K)	Thermal Resistance of Package [custom]	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Min]	Viewing Angle	Current - Test	Thermal Resistance of Package [custom]	Height - Seated (Max) [Max]	Thermal Resistance of Package [diameter]
Cree LED XHP35B-H0-0000-0D0ZA235H	3535 Metric	1414	1414	Warm White	88 lm/W	1.5 A	3500 K	0.7 °C/W	11.2 V	95	3.45 mm	0.136 in	0.136 in	3.45 mm	1.13 mm	0.044 "	Surface Mount	355 lm	343 lm	330 lm	120 °	350 mA
Cree LED XHP35B-H0-0000-0D0UA40E2	3535 Metric	1414	SMD	Cool White	94 lm/W	1.05 A	5700 K		11.2 V	90	3.45 mm	0.136 in	0.136 in	3.45 mm	1.13 mm	0.044 "	Surface Mount		368 lm		120 °	350 mA	1.8 °C/W
Cree LED XHP35B-H0-0000-0D0HC227E	3535 Metric	1414	1414	Cool White	117 lm/W	1.05 A	2700 K		11.2 V	80	3.45 mm	0.136 in	0.136 in	3.45 mm		0.109 "	Surface Mount		458 lm		120 ° 135 °	350 mA	1.8 °C/W	2.78 mm
Cree LED XHP35B-H0-0000-0D0HB457E	3535 Metric	1414	1414	Cool White	108 lm/W	1.05 A 1.5 A	2700 K	0.7 °C/W	11.2 V	80	3.45 mm	0.136 in	0.136 in	3.45 mm		0.109 "	Surface Mount	440 lm	425 lm	410 lm	120 ° 135 °	350 mA	1.8 °C/W	2.78 mm
Cree LED XHP35B-00-0000-0D0UC235G	3535 Metric	1414	1414	Warm White	117 lm/W	1.05 A	3500 K		11.2 V	90	3.45 mm	0.136 in	0.136 in	3.45 mm		0.109 "	Surface Mount		458 lm		120 ° 135 °	350 mA	1.8 °C/W	2.78 mm
Cree LED XHP35B-00-0000-0D0UB227H	3535 Metric	1414	1414	Warm White	101 lm/W	1.05 A	2700 K		11.2 V	90	3.45 mm	0.136 in	0.136 in	3.45 mm		0.109 "	Surface Mount		395 lm		120 ° 135 °	350 mA	1.8 °C/W	2.78 mm
Cree LED XHP35B-H0-0000-0D0ZB440G	3535 Metric	1414	1414	Neutral White	108 lm/W	1.5 A	4000 K	0.7 °C/W	11.2 V	95	3.45 mm	0.136 in	0.136 in	3.45 mm	1.13 mm	0.044 "	Surface Mount	440 lm	425 lm	410 lm	120 °	350 mA
Cree LED XHP35B-H0-0000-0D0UB40E5	3535 Metric	1414	SMD	Neutral White	108 lm/W	1.05 A	4000 K		11.2 V	90	3.45 mm	0.136 in	0.136 in	3.45 mm	1.13 mm	0.044 "	Surface Mount	440 lm	425 lm	410 lm	120 °	350 mA	1.8 °C/W
Cree LED XHP35B-H0-0000-0D0UB20E7	3535 Metric	1414	SMD	Warm White	101 lm/W	1.05 A			11.2 V	90	3.45 mm	0.136 in	0.136 in	3.45 mm	1.13 mm	0.044 "	Surface Mount		395 lm		120 °	350 mA	1.8 °C/W
Cree LED XHP35B-00-0000-0D0BD40E5	3535 Metric	1414	SMD	Neutral White	145 lm/W	1.05 A	4000 K		11.2 V	70	3.45 mm	0.136 in	0.136 in	3.45 mm		0.109 "	Surface Mount	590 lm	570 lm	550 lm	135 °	350 mA		2.78 mm	2.4 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 7.44

Description

General part information

XHP35B Series

LED Lighting XLamp® XHP35.2 White, Warm 3500K 2-Step MacAdam Ellipse 11.2V 350mA 120° 1414 (3535 Metric)
