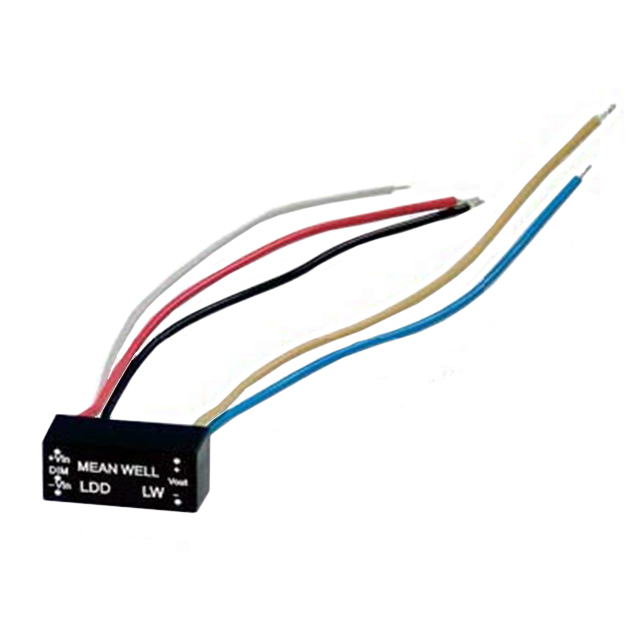

LDD-700LW
ActiveMEAN WELL USA Inc.
LED DRIVER CC BUCK 2-30V 700MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LDD-700LW
ActiveMEAN WELL USA Inc.
LED DRIVER CC BUCK 2-30V 700MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LDD-700LW |
|---|---|
| Approval Agency | CE |
| Current - Output (Max) [Max] | 700 mA |
| Dimming | PWM |
| Efficiency | 95 % |
| Features | Remote On/Off, SCP, OTP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Ratings | IP67 |
| Size / Dimension [x] | 22.6 mm |
| Size / Dimension [x] | 0.89 in |
| Size / Dimension [y] | 9.9 mm |
| Size / Dimension [y] | 0.39 " |
| Size / Dimension [z] | 8.9 mm |
| Size / Dimension [z] | 0.35 " |
| Termination Style | Wire Leads |
| Topology | Buck |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Output [Max] | 30 VDC |
| Voltage - Output [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.26 | |
| 5 | $ 4.88 | |||
| 10 | $ 4.72 | |||
Description
General part information
LDD-700 Series
700mA 2 ~ 30V Constant Current LED Driver Buck Topology 1 Output
