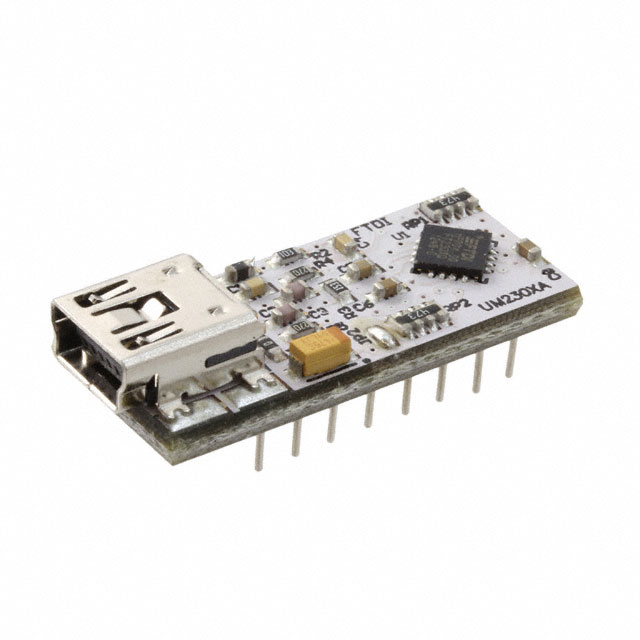

UMFT230XA-02

Obsolete

FTDI, Future Technology Devices International Ltd

MOD USB BASIC UART DEV FT230X

Search across all available documentation for this part.

Obsolete

FTDI, Future Technology Devices International Ltd

MOD USB BASIC UART DEV FT230X

Technical Specifications

Parameters and characteristics for this part

Specification	UMFT230XA-02

Contents	Board(s)
Embedded	Yes, ASIC
Primary Attributes	USB Full Speed, 16-Pin DIP Socket, Mini-B Socket
Primary Attributes	0.3 in
Secondary Attributes	USB Charging Detection
Supplied Contents	Board(s)
Type	Interface
Utilized IC / Part	FT230X

Part	Primary Attributes	Embedded	Type	Contents	Supplied Contents	Utilized IC / Part	Secondary Attributes	Primary Attributes
FTDI, Future Technology Devices International Ltd UMFT230XB-WE	Flying Leads	Yes ASIC	Interface	Board(s)	Board(s)	FT230X	USB Charging Detection
FTDI, Future Technology Devices International Ltd UMFT230XB-NC	PCB Pads	Yes ASIC	Interface	Board(s)	Board(s)	FT230X	USB Charging Detection
FTDI, Future Technology Devices International Ltd UMFT230XA-02	16-Pin DIP Socket Mini-B Socket USB Full Speed	Yes ASIC	Interface	Board(s)	Board(s)	FT230X	USB Charging Detection	0.3 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

FT230X USBmadeEZ-UART, FT-X, X-Chip USB 2.0 to UART Interface Evaluation Board

Technical documentation and resources
