0051260012

Obsolete

Molex

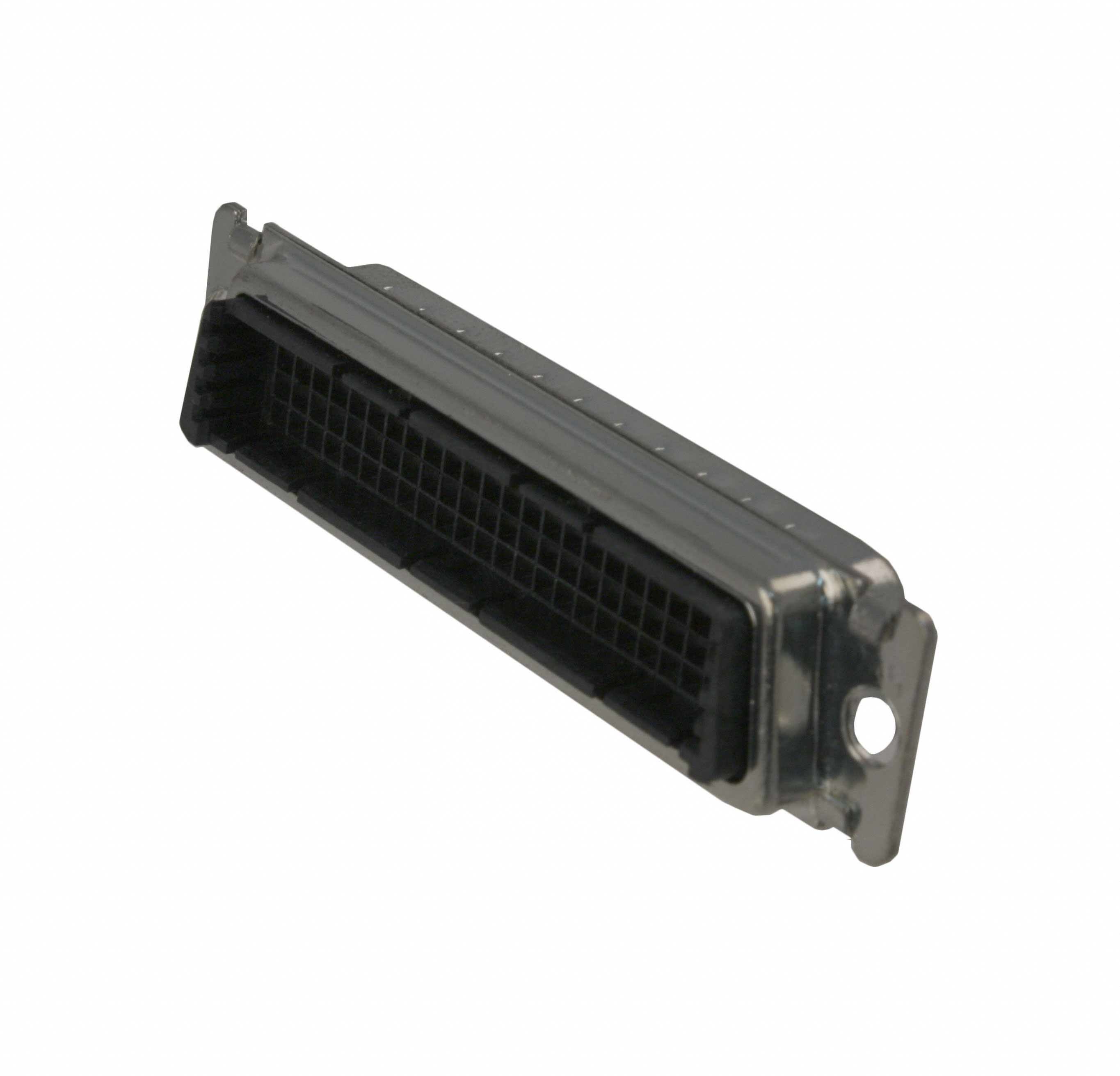

CONN HOUSING PLUG 96POS

Search across all available documentation for this part.

Obsolete

Molex

CONN HOUSING PLUG 96POS

Technical Specifications

Parameters and characteristics for this part

Specification	0051260012

Color	Black
Connector Style	D-Type
Connector Type	Plug for Male Matrix Strip
Contact Type	Signal
Dielectric Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	96
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shell Finish Thickness	150 µin
Shell Finish Thickness	3.81 µm

Part	Number of Positions	Termination	Voltage Rating	Contact Type	Connector Style	Connector Type	Material Flammability Rating	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish	Contact Material	Color	Flange Feature	Features	Contact Finish Thickness	Contact Finish Thickness	Shell Finish Thickness	Shell Finish Thickness	Note	Shell Material, Finish	Backset Spacing	Backset Spacing
Molex 0051260001	96	Solder	40 V	Signal	Board to Board D-Type Matrix	Receptacle Female Sockets	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled	-20 C	80 C	Panel Mount Through Hole	Gold	Beryllium Copper	Black	Housing/Shell (Unthreaded)	Shielded	0.76 Ám	30 Áin
Molex 0051260012	96			Signal	D-Type	Plug for Male Matrix Strip		Liquid Crystal Polymer (LCP) Glass Filled	-20 C	80 C	Free Hanging (In-Line)			Black	Housing/Shell (Unthreaded)	Shielded			150 µin	3.81 µm	Contacts Not Included
Molex 0051260000	96	Solder	40 V	Signal	Board to Board D-Type Matrix	Receptacle Female Sockets	UL94 V-0	Liquid Crystal Polymer (LCP) Glass Filled	-20 C	80 C	Panel Mount Right Angle Through Hole	Gold	Beryllium Copper	Black	Housing/Shell (M3)	Shielded	0.76 Ám	30 Áin				Nickel Plated Steel	8.43 mm	0.332 "
Molex 0051260002	96			Signal	D-Type	Receptacle for Female Matrix Strip		Liquid Crystal Polymer (LCP) Glass Filled	-20 C	80 C	Free Hanging (In-Line)			Black	Housing/Shell (Unthreaded)	Shielded			100 µin	2.54 µm	Contacts Not Included	Nickel Plated Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Plug for Male Matrix Strip Housing D-Type Connector 96 Position
