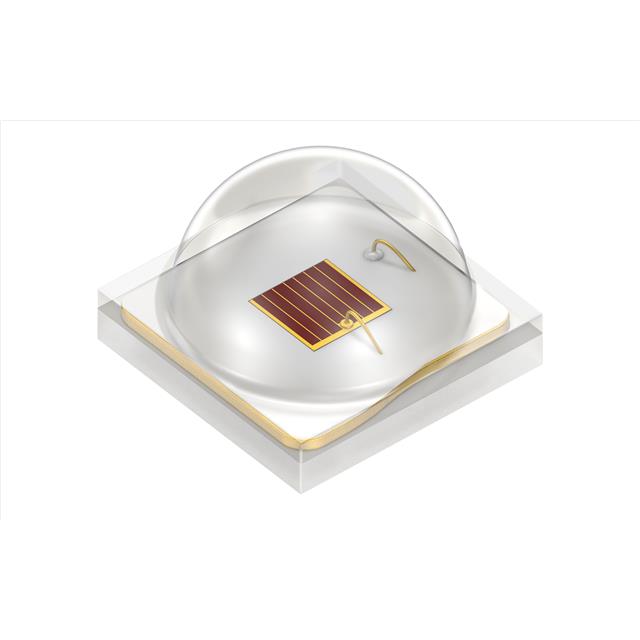

GH CSSRM2.24-VLVN-1-0-700-R18

Obsolete

ams-OSRAM USA INC.

LED OSLON SQ RED 640NM SMD

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

LED OSLON SQ RED 640NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	GH CSSRM2.24-VLVN-1-0-700-R18

Color	Red
Current - Max [Max]	1 A
Height - Seated (Max) [Max] [z]	2.27 mm
Height - Seated (Max) [Max] [z]	0.089 in
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	SMD
Thermal Resistance of Package	2.2 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	2.15 V
Wavelength	640 nm

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Color	Viewing Angle	Supplier Device Package	Thermal Resistance of Package	Mounting Type	Package / Case	Package / Case	Current - Max [Max]	Wavelength	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
ams-OSRAM USA INC. GH CSSRM2.24-VLVN-1-0-700-R18	2.27 mm	0.089 in	Red	120 °	SMD	2.2 °C/W	Surface Mount	1212	3030 Metric	1 A	640 nm	2.15 V	0.118 in	3 mm	3 mm	0.118 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color OSLON® Square Horticulture Red 640nm (Typ) 1212 (3030 Metric)
