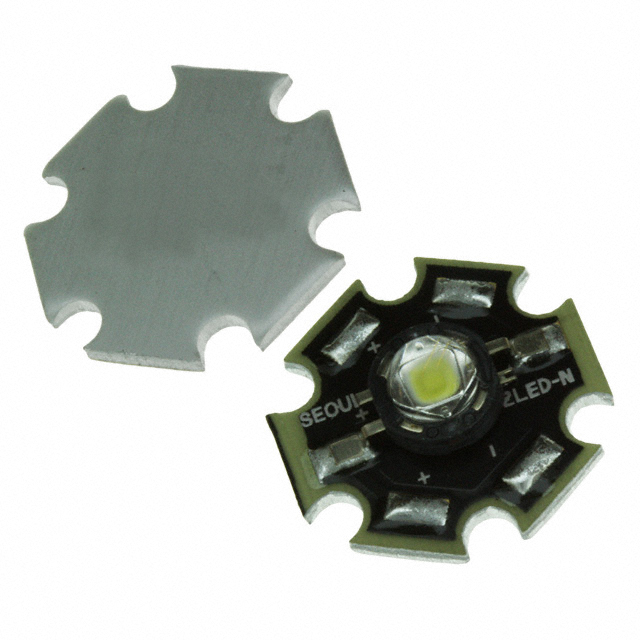

N42182-T1

Obsolete

Seoul Semiconductor

LED MOD Z POWER WH STARBRD

Search across all available documentation for this part.

Obsolete

Seoul Semiconductor

LED MOD Z POWER WH STARBRD

Technical Specifications

Parameters and characteristics for this part

Specification	N42182-T1

Color	White, Warm
Configuration	Starboard
CRI (Color Rendering Index)	93
Current - Max [Max]	800 mA
Current - Test	350 mA
Height [z]	6.78 mm
Lens Type	Domed
Light Emitting Surface (LES) [diameter]	5.6 mm
Lumens/Watt @ Current - Test	58 lm/W
Luminous Flux @ Current/Temperature	66 lm
Size / Dimension [diameter]	19.9 mm
Type	LED Module
Viewing Angle	124 °
Voltage - Forward (Vf) (Typ)	3.25 V

Part	Lens Type	CRI (Color Rendering Index)	Color	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Height [z]	Configuration	CCT (K)	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Current - Test	Current - Max [Max]	Type	Luminous Flux @ Current/Temperature	Light Emitting Surface (LES) [diameter]	Size / Dimension [diameter]
Seoul Semiconductor N42182-08-FA	Domed	93	Warm White	47 lm/W	3.25 V	6.78 mm	Starboard	2700 K	19.9 mm	19.9 mm	124 °	350 mA	800 mA	LED Module	53 lm
Seoul Semiconductor N42182-T1	Domed	93	Warm White	58 lm/W	3.25 V	6.78 mm	Starboard				124 °	350 mA	800 mA	LED Module	66 lm	5.6 mm	19.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module Z Power, P4 White, Warm Starboard
