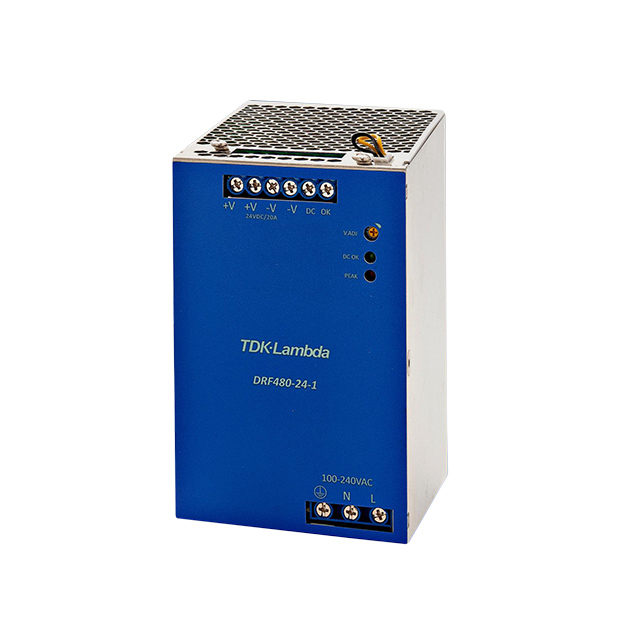

DRF480-24-1/HL

Active

TDK-LAMBDA

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 480 W, 24 VDC, 20 A

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 480 W, 24 VDC, 20 A

Technical Specifications

Parameters and characteristics for this part

Specification	DRF480-24-1/HL

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Hazardous Locations, ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	20 A
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	125 V
Efficiency	94 %
Features	Load Sharing, PFC, Remote On/Off, Adjustable Output, Universal Input
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	480 W
Size / Dimension [x]	4.53 "
Size / Dimension [x]	115 mm
Size / Dimension [y]	3.23 "
Size / Dimension [y]	82 mm
Size / Dimension [z]	4.86 in
Size / Dimension [z]	123.4 mm
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Applications	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Input Type	Current - Output (Max) [Max]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	DC Voltage - Input (Min) [Min]	Number of Outputs	Efficiency	Voltage - Isolation	Features	Voltage - Output 1	DC Voltage - Input (Max) [Max]
TDK-LAMBDA DRF480-24-1/HL	Hazardous Locations ITE (Commercial)	85 VAC	264 VAC	4.86 in	123.4 mm	4.53 "	3.23 "	82 mm	115 mm	AC or DC	20 A	CE	-25 °C	70 °C	480 W	125 V	1	94 %	3000 V	Adjustable Output Load Sharing PFC Remote On/Off Universal Input	24 V	370 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 403.10
Newark	Each	1	$ 403.10
		10	$ 382.95

General part information

AC/DC DIN RAIL POWER SUPPLY (PSU), 1 OUTPUT, 480 W, 24 VDC, 20 A
