BA6219B

Obsolete

Rohm Semiconductor

IC MOTOR DRIVER 8V-18V 10HSIP

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

IC MOTOR DRIVER 8V-18V 10HSIP

Technical Specifications

Parameters and characteristics for this part

Specification	BA6219B

Applications	General Purpose
Current - Output	2 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	On/Off
Motor Type - AC, DC	Brushed DC
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Half Bridge (2)

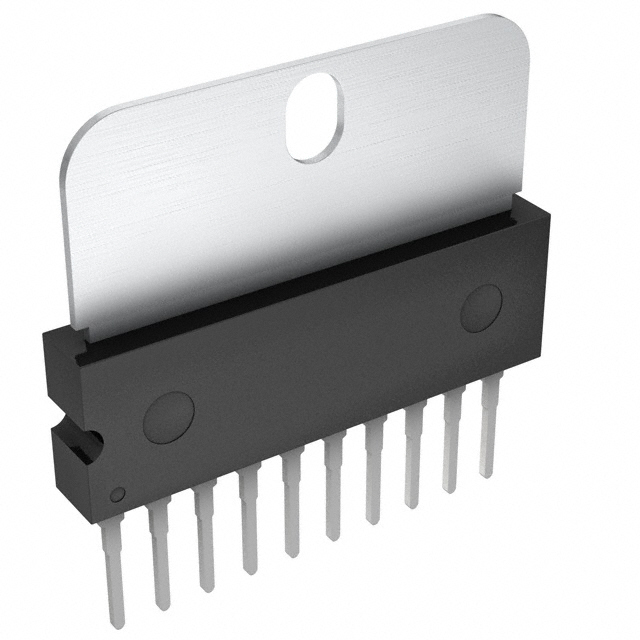

Package / Case	10-SIP Exposed Tab
Supplier Device Package	10-HSIP
Technology	Bipolar
Voltage - Load [Max]	18 V
Voltage - Load [Min]	8 V
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	8 V

Part	Output Configuration	Technology	Applications	Mounting Type	Function	Current - Output	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Voltage - Load [Max]	Voltage - Load [Min]	Motor Type - AC, DC	Package / Case
Rohm Semiconductor BA6219B	Half Bridge (2)	Bipolar	General Purpose	Through Hole	Driver - Fully Integrated Control and Power Stage	2 A	On/Off	-25 °C	150 °C	10-HSIP	8 V	18 V	18 V	8 V	Brushed DC	10-SIP Exposed Tab

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Motor Driver Bipolar On/Off 10-HSIP
