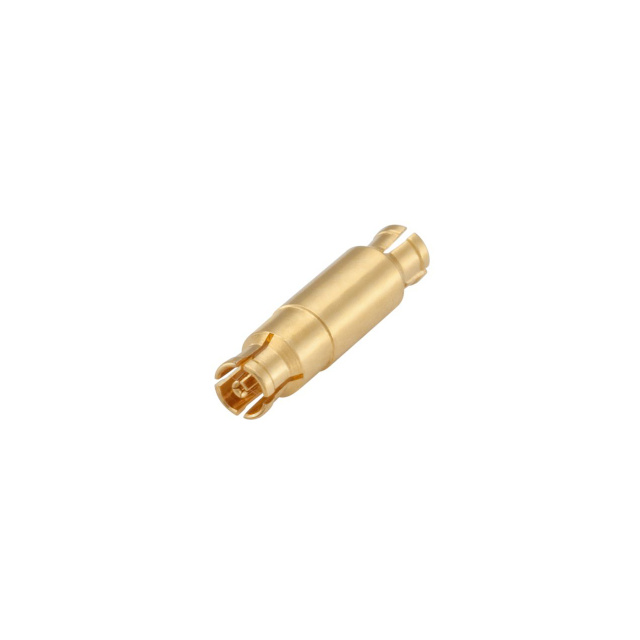

18K107-K00L5

Active

Rosenberger

MINI SMP ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

MINI SMP ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	18K107-K00L5

Adapter Series	Mini, SMP
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	SMB Mini Jack, Male Pin
Convert To (Adapter End)	Male Pin, SMB Mini Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	65 GHz
Impedance	50 Ohms
Insertion Loss	0.4 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Center Contact Material	Mounting Type	Convert From (Adapter End)	Dielectric Material	Adapter Type	Style	Body Finish	Frequency - Max [Max]	Center Gender	Impedance	Adapter Series	Insertion Loss	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Fastening Type	Conversion Type	Convert To (Adapter End)	Body Material	Mating Cycles
Rosenberger 18K107-K00L5	Beryllium Copper	Free Hanging (In-Line)	SMB Mini Jack Male Pin	Polytetrafluoroethylene (PTFE)	Jack to Jack	Straight	Gold	65 GHz	Female to Female	50 Ohms	Mini SMP	0.4 dB	155 °C	-55 °C	Gold	Snap-On	Same Series	Male Pin SMB Mini Jack	Beryllium Copper	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMB Mini Jack, Male Pin To SMB Mini Jack, Male Pin 50 Ohms
