Q-3703E000D012I

Active

Amphenol Custom Cable

COAX CBL SMA TO SMA 12"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO SMA 12"

Technical Specifications

Parameters and characteristics for this part

Part	1st Connector	1st Connector Mounting Type	Overall Impedance	Style	2nd Connector Mounting Type	1st Contact Gender	Cable Type	2nd Connector	Features	Connector Impedance	2nd Contact Gender	Color	Frequency - Max [Max]	Cable Impedance	Length	Length	Length
Amphenol Custom Cable Q-3703E000D1.5M	Right Angle SMA Plug	Free Hanging (In-Line)	50 Ohms	SMA to SMA	Free Hanging (In-Line)	Male	LMR 195	SMA Plug	Shielded	50 Ohms	Male	Black	6000 MHz	50 Ohms	59.1 in	4.9 ft	1.5 m
Amphenol Custom Cable Q-3703E000D006I	Right Angle SMA Plug	Free Hanging (In-Line)	50 Ohms	SMA to SMA	Free Hanging (In-Line)	Male	LMR 195	SMA Plug	Shielded	50 Ohms	Male	Black	6000 MHz	50 Ohms	6 in		152.4 mm
Amphenol Custom Cable Q-3703E000D012I	Right Angle SMA Plug	Free Hanging (In-Line)	50 Ohms	SMA to SMA	Free Hanging (In-Line)	Male	LMR 195	SMA Plug	Shielded	50 Ohms	Male	Black	6000 MHz	50 Ohms	12 "		304.8 mm
Amphenol Custom Cable Q-3703E000D001M	Right Angle SMA Plug	Free Hanging (In-Line)	50 Ohms	SMA to SMA	Free Hanging (In-Line)	Male	LMR 195	SMA Plug	Shielded	50 Ohms	Male	Black	6000 MHz	50 Ohms	39.4 in	3.3 ft	1 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

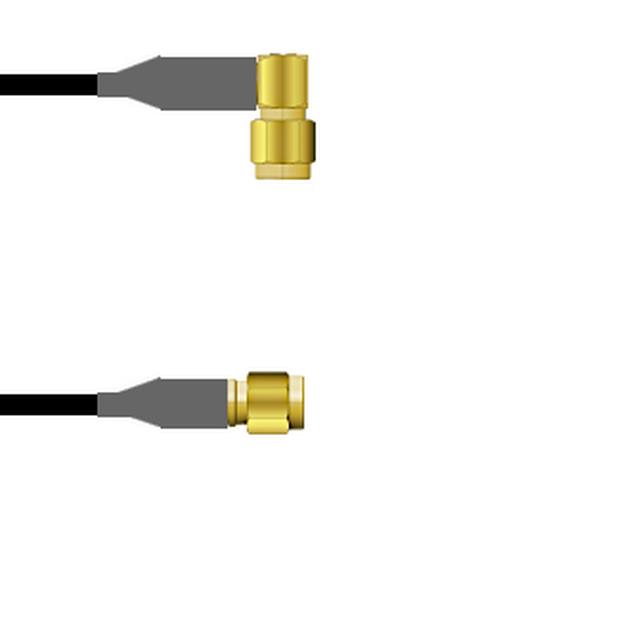

Cable Assembly Coaxial SMA to SMA LMR 195 12.00" (304.80mm)

Technical documentation and resources

No documents available
