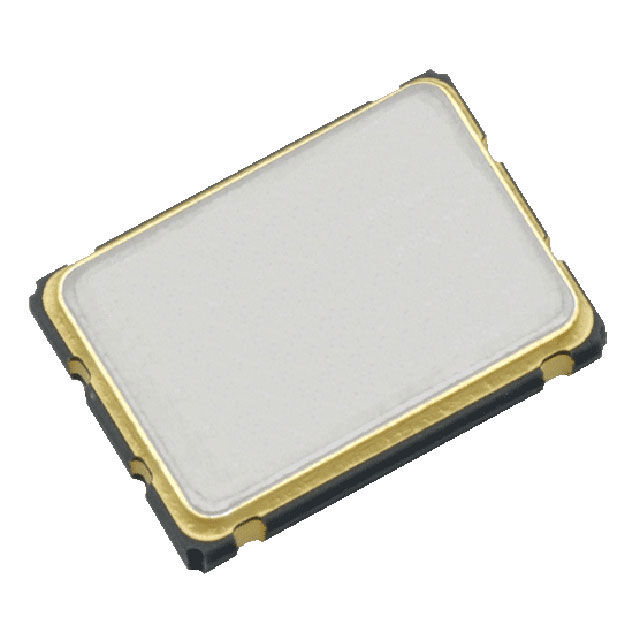

XG-2102CA 125.0000M-PGRA

Active

EPSON

XG-2102CA 125.0000M-PGRA: SAW OS

Search across all available documentation for this part.

Active

EPSON

XG-2102CA 125.0000M-PGRA: SAW OS

Technical Specifications

Parameters and characteristics for this part

Specification	XG-2102CA 125.0000M-PGRA

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	2 mA
Current - Supply (Max) [Max]	60 mA
Frequency	125 MHz
Frequency Stability	50 ppm
Function	Enable/Disable
Height - Seated (Max) [Max]	1.4 mm
Height - Seated (Max) [Max]	0.055 in
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-5 °C
Output	LVPECL
Package / Case	6-SMD, No Lead
Size / Dimension [x]	7 mm
Size / Dimension [x]	0.276 "
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Supplier Device Package	6-SMD (7x5)
Type	SO (SAW)
Voltage - Supply	3.3 V

Part	Output	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type	Frequency Stability	Current - Supply (Disable) (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Base Resonator	Function	Frequency	Voltage - Supply	Current - Supply (Max) [Max]	Supplier Device Package
EPSON XG-2102CA 644.53125M-PGPNL3	LVPECL	1.4 mm	0.055 in	6-SMD No Lead	70 °C	0 °C	SO (SAW)	50 ppm	2 mA	7 mm	5 mm	0.276 "	0.197 "	Surface Mount	Crystal	Enable/Disable	644.53125 MHz	3.3 V	60 mA
EPSON XG-2102CA 125.0000M-PGRA	LVPECL	1.4 mm	0.055 in	6-SMD No Lead	85 °C	-5 °C	SO (SAW)	50 ppm	2 mA	7 mm	5 mm	0.276 "	0.197 "	Surface Mount	Crystal	Enable/Disable	125 MHz	3.3 V	60 mA	6-SMD (7x5)
EPSON XG-2102CA 312.5000M-LHPAL0	LVDS	1.4 mm	0.055 in	6-SMD No Lead	70 °C	0 °C	SO (SAW)	100 ppm	15 mA	7 mm	5 mm	0.276 "	0.197 "	Surface Mount	Crystal	Enable/Disable	312.5 MHz	3.3 V	30 mA
EPSON XG-2102CA 644.53125M-PGPN	LVPECL	1.4 mm	0.055 in	6-SMD No Lead	70 °C	0 °C	SO (SAW)	50 ppm	2 mA	7 mm	5 mm	0.276 "	0.197 "	Surface Mount	Crystal	Enable/Disable	644.53125 MHz	3.3 V	60 mA
EPSON XG-2102CA 644.53125M-PGPNL0	LVPECL	1.4 mm	0.055 in	6-SMD No Lead	70 °C	0 °C	SO (SAW)	50 ppm	2 mA	7 mm	5 mm	0.276 "	0.197 "	Surface Mount	Crystal	Enable/Disable	644.53125 MHz	3.3 V	60 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.22

General part information

125 MHz SO (SAW) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
