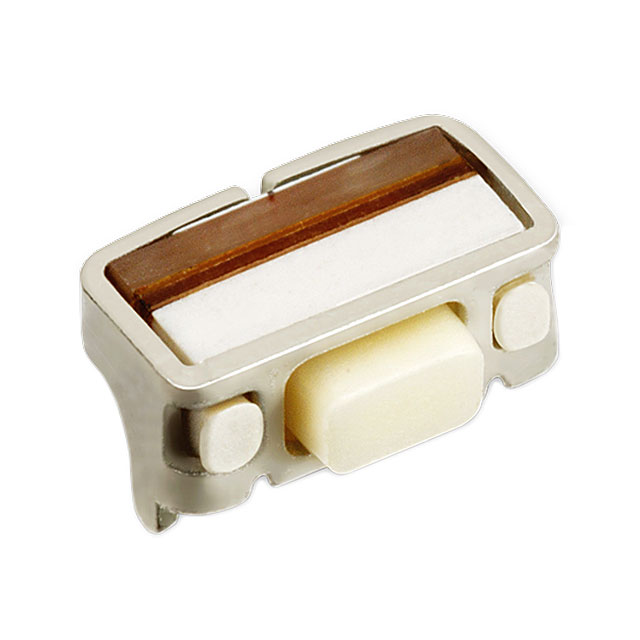

LS12T2-T
ActiveCitizen Finedevice Co Ltd
SWITCH TACTILE SPST-NO 0.02A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LS12T2-T
ActiveCitizen Finedevice Co Ltd
SWITCH TACTILE SPST-NO 0.02A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LS12T2-T |
|---|---|
| Actuator Length, Right Angle | 2.85 mm |
| Actuator Orientation | Side Actuated |
| Actuator Type | Rectangular Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 12 VDC, 0.02 A |
| Illumination | Non-Illuminated |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Surface Mount, Right Angle |
| Outline [x] | 3.9 mm |
| Outline [y] | 1.95 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2 mm |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.46 | |
| 10 | $ 0.38 | |||
| 25 | $ 0.35 | |||
| 100 | $ 0.31 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.25 | |||
| Digi-Reel® | 1 | $ 0.46 | ||
| 10 | $ 0.38 | |||
| 25 | $ 0.35 | |||
| 100 | $ 0.31 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.25 | |||
| Tape & Reel (TR) | 3000 | $ 0.22 | ||
| 6000 | $ 0.21 | |||
| 9000 | $ 0.20 | |||
| 15000 | $ 0.19 | |||
| 21000 | $ 0.18 | |||
| 30000 | $ 0.18 | |||
Description
General part information
LS12T2 Series
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
