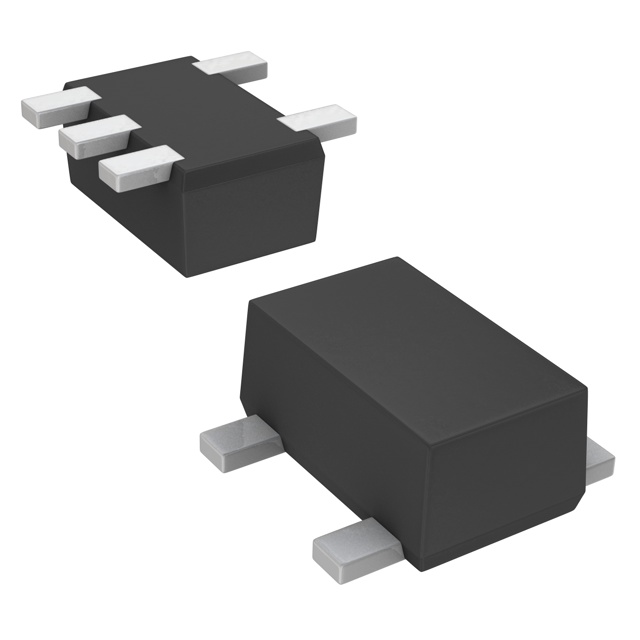

UP03397G0L

Obsolete

Panasonic Industrial Automation Sales

TRANS PREBIAS NPN/PNP SSMINI5

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS PREBIAS NPN/PNP SSMINI5

Technical Specifications

Parameters and characteristics for this part

Specification	UP03397G0L

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	500 nA
DC Current Gain (hFE) (Min) @ Ic, Vce	35 hFE, 80
Frequency - Transition	80 MHz, 150 MHz
Mounting Type	Surface Mount
Package / Case	SOT-665
Power - Max [Max]	125 mW
Resistor - Emitter Base (R2)	47000 Ohms, 10 kOhms
Supplier Device Package	SSMini5-F3
Transistor Type	1 NPN, 1 PNP
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V
Voltage - Collector Emitter Breakdown (Max) [Min]	30 V

Part	Resistor - Emitter Base (R2)	Frequency - Transition	Current - Collector (Ic) (Max) [Max]	Package / Case	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce	Voltage - Collector Emitter Breakdown (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Min]	Mounting Type	Current - Collector Cutoff (Max) [Max]	Transistor Type	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic	Resistor - Base (R1)	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]
Panasonic Industrial Automation Sales UP03397G0L	10 kOhms 47000 Ohms	80 MHz 150 MHz	100 mA	SOT-665	SSMini5-F3	35 hFE 80	50 V	30 V	Surface Mount	500 nA	1 NPN 1 PNP	125 mW
Panasonic Industrial Automation Sales UP0339600L	10 kOhms 47000 Ohms	80 MHz 150 MHz	100 mA	SOT-665	SSMini5-F2	35 hFE 80	50 V		Surface Mount	500 nA	1 NPN 1 PNP	125 mW	250 mV	10 kOhms 22 kOhms
Panasonic Industrial Automation Sales UP0339000L	47000 Ohms	80 MHz 150 MHz	100 mA	SOT-665	SSMini5-F2		50 V		Surface Mount	500 nA	1 NPN 1 PNP	125 mW	250 mV	10 kOhms 47 kOhms	80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V, 30V 100mA 150MHz, 80MHz 125mW Surface Mount SSMini5-F3
