Q-010470001.75M
ActiveAmphenol Custom Cable

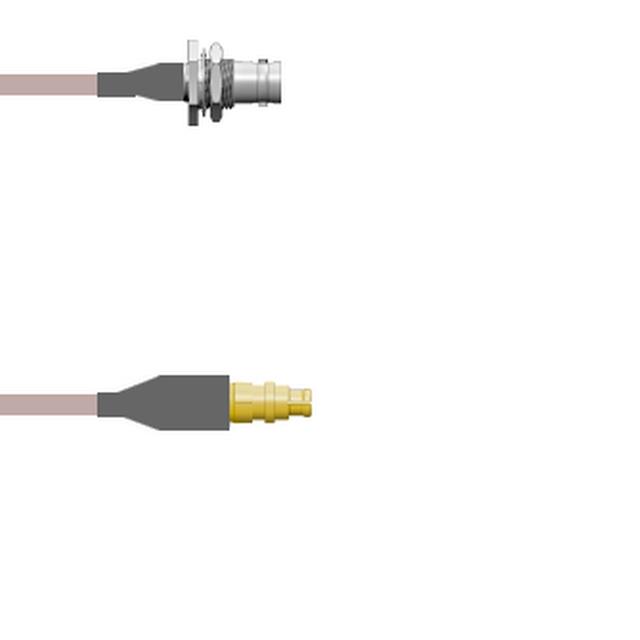

COAX CBL BNC TO SMPM 29.5"
Deep-Dive with AI
Search across all available documentation for this part.
Q-010470001.75M
ActiveAmphenol Custom Cable
COAX CBL BNC TO SMPM 29.5"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-010470001.75M |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SMPM Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-178 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 29.53 " |
| Length | 750 mm |
| Overall Impedance | 50 Ohms |
| Style | BNC to SMPM |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 112.09 | |
| 25 | $ 109.91 | |||
| 50 | $ 107.72 | |||
| 100 | $ 105.54 | |||
| 250 | $ 103.35 | |||
Description
General part information
Q-010470 Series
Cable Assembly Coaxial BNC to SMPM RG-178 29.53" (750.00mm)
Documents
Technical documentation and resources
No documents available
