3C-R(40)

Hirose Electric USA, Inc.

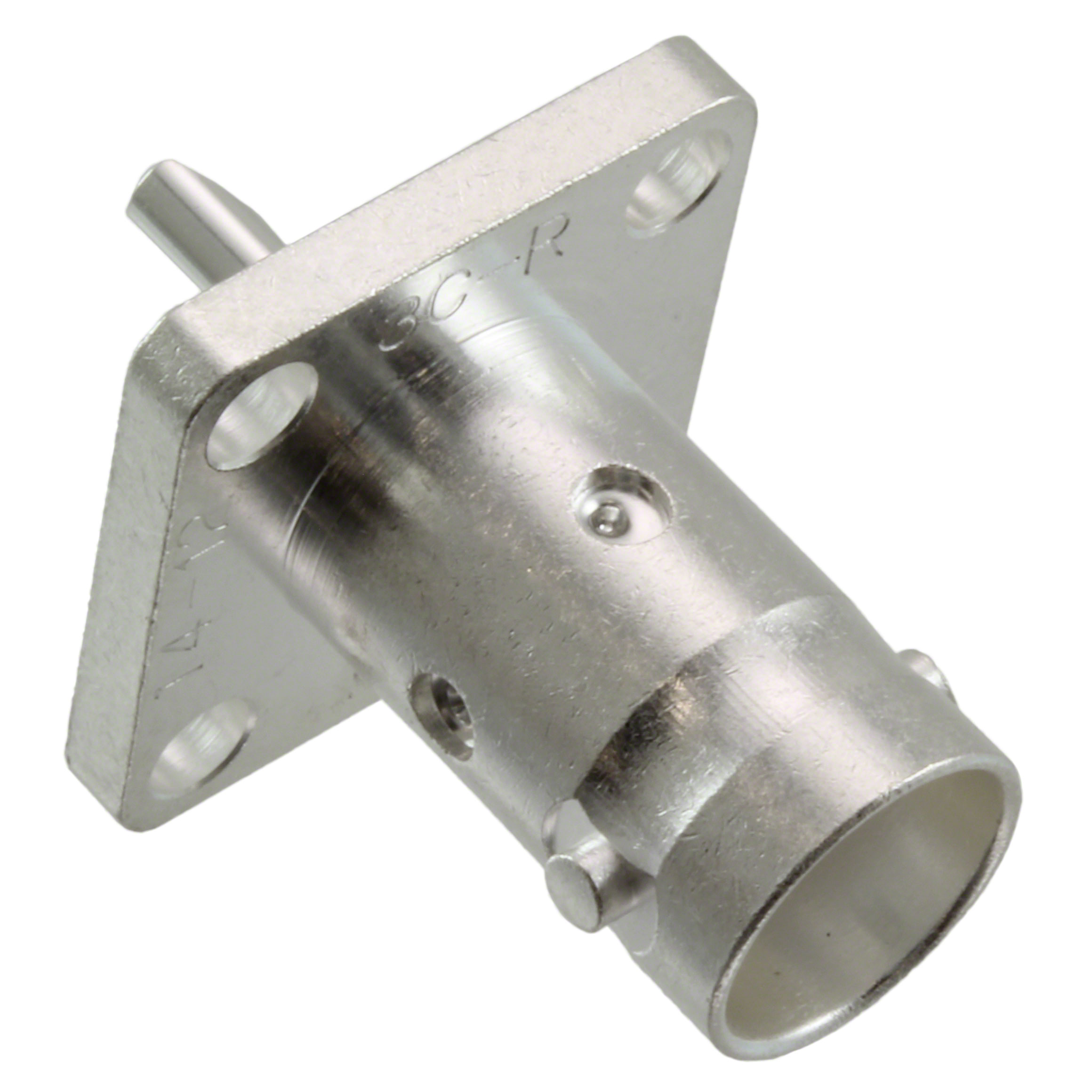

CONN BNC RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Hirose Electric USA, Inc.

CONN BNC RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	3C-R(40)

Body Finish	Silver
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	1000
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Mating Cycles	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Frequency - Max [Max]	Housing Color	Mounting Feature	Center Contact Material	Impedance	Body Finish	Shield Termination	Connector Style	Fastening Type	Center Contact Plating	Contact Termination	Connector Type	Number of Ports
Hirose Electric USA, Inc. 3C-R(40)	1000	Polytetrafluoroethylene (PTFE)	85 °C	-55 °C	Brass	1 GHz	Silver	Flange	Beryllium Copper	50 Ohms	Silver	Solder	BNC	Bayonet Lock	Silver	Solder Cup	Female Socket Jack	1
Hirose Electric USA, Inc. 3C-R(44)
Hirose Electric USA, Inc. 3C-R(50)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
