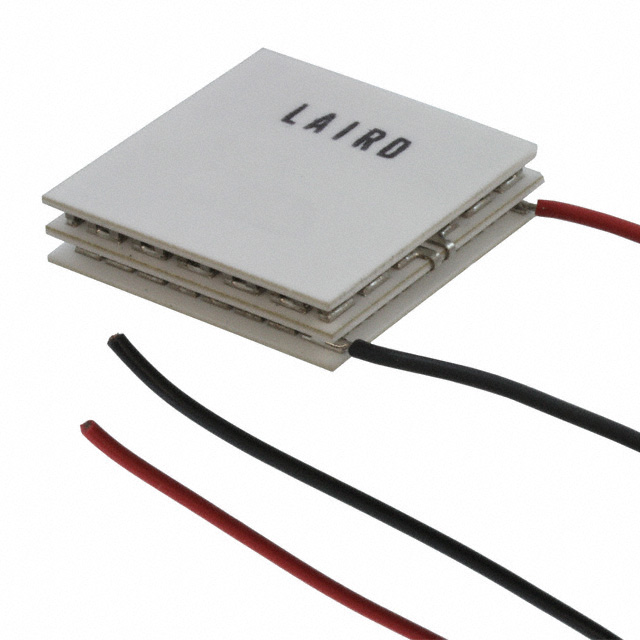

16505-302

Active

Laird Thermal Systems, Inc.

PELTIR MS2,190,10,13,08,20,11,W8

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIR MS2,190,10,13,08,20,11,W8

Technical Specifications

Parameters and characteristics for this part

Part	Current - Max [Max]	Operating Temperature	Number of Stages	Features	Delta Tmax @ Th	Height [z]	Qmax @ Th	Voltage - Max [Max]	Size / Dimension [x]	Size / Dimension [y]
Laird Thermal Systems, Inc. 16505-304	2.8 A	80 °C	2	Lead Wires Non-Sealed	87 °C	6.6 mm	16.4 W	15.6 V	30 mm	30 mm
Laird Thermal Systems, Inc. 16505-302	2.8 A	80 °C	2	Lead Wires Non-Sealed	87 °C	6.45 mm	16.4 W	15.6 V	30 mm	30 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 112.86

General part information

Peltier Module 16.4W @ 25°C 2.8 A 80°C
