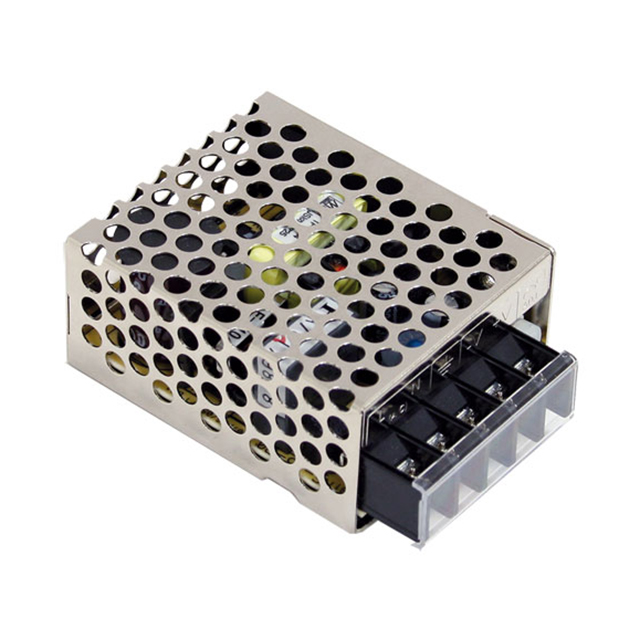

RS-15-48

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 48V 15W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 48V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	RS-15-48

Applications	ITE (Commercial)
Approval Agency	TUV, cURus, CB, CCC, CE
Current - Output 1	313 mA
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	15 W
Size / Dimension [x]	2.46 "
Size / Dimension [x]	62.5 mm
Size / Dimension [y]	2.01 in
Size / Dimension [y]	51 mm
Size / Dimension [z]	1.1 in
Size / Dimension [z]	28 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Type	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Features	Voltage - Output 1	Minimum Load Required	Current - Output 1	Voltage - Isolation	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Mounting Type
MEAN WELL USA Inc. RS-15-48	Enclosed	85 VAC 120 VDC	264 VAC 370 VDC	CB CCC CE cURus TUV	Adjustable Output Universal Input	48 V		313 mA	3000 V	1	-20 °C	70 °C	ITE (Commercial)	2.01 in	2.46 "	1.1 in	51 mm	62.5 mm	28 mm	15 W	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC, 120 ~ 370 VDC Input
