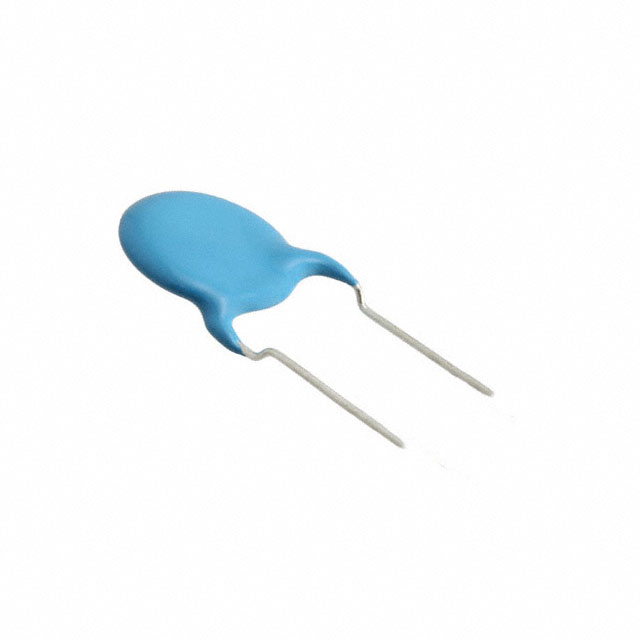

DE11XRB220KJ4BR01F

Active

Murata Power Solutions Inc.

CERAMIC CAPACITOR, CERAMIC,

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

CERAMIC CAPACITOR, CERAMIC,

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Mounting Type	Lead Spacing	Lead Spacing	Tolerance	Ratings	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Style	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Murata Power Solutions Inc. DE11XRB680KA4BR01F	Safety	Disc Radial	12 mm	0.472 "	500 VAC	Through Hole	0.394 in	10 mm	10 %	X1 Y1	68 pF	9 mm	0.354 in	Straight	125 °C	-40 °C	SL
Murata Power Solutions Inc. DE11XRB100KJ4BR01F	Safety	Disc Radial	11 mm	0.433 in	500 VAC	Through Hole	0.394 in	10 mm	10 %	X1 Y1	10 pF	8 mm	0.315 "	Straight	125 °C	-40 °C	SL
Murata Power Solutions Inc. DE11XRB470KJ4BR01F	Safety	Disc Radial	11 mm	0.433 in	500 VAC	Through Hole	0.394 in	10 mm	10 %	X1 Y1	47 pF	8 mm	0.315 "	Straight	125 °C	-40 °C	SL
Murata Power Solutions Inc. DE11XRB330KN4AR01F	Safety	Disc Radial			500 VAC	Through Hole	0.394 in	10 mm	10 %	X1 Y1	33 pF	7 mm	0.276 in	Straight	125 °C	-40 °C	SL	0.394 in	10 mm
Murata Power Solutions Inc. DE11XRB220KJ4BR01F	Safety	Disc Radial			500 VAC	Through Hole	0.394 in	10 mm	10 %	X1 Y1	22 pF	6 mm	0.236 in	Straight	125 °C	-40 °C	SL	0.354 in	9 mm
Murata Power Solutions Inc. DE11XRB470KN4AR01F	Safety	Disc Radial	11 mm	0.433 in	500 VAC	Through Hole	0.394 in	10 mm	10 %	X1 Y1	47 pF	8 mm	0.315 "	Straight	125 °C	-40 °C	SL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.26

General part information

22 pF ±10% 500VAC Ceramic Capacitor SL Radial, Disc
