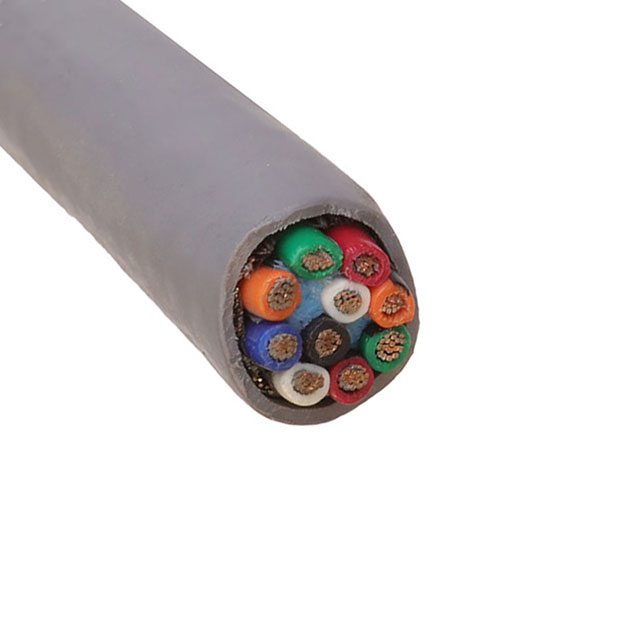

M1610 SL005

Active

ALPHA WIRE

CABLE 10COND 28AWG SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 10COND 28AWG SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M1610 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	5.11 mm
Jacket (Insulation) Diameter [diameter]	0.201 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.457 mm
Jacket (Insulation) Thickness	0.018 in
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shield Coverage	90 %
Shield Material	Copper, Tinned
Shield Type	Braid
Voltage	600 V
Wire Gauge	28 AWG

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shield Coverage	Shield Type	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Conductor Insulation	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Jacket Color	Conductor Material	Length [x]	Length [x]	Jacket (Insulation) Material	Shield Material
ALPHA WIRE M1610 SL002	105 ░C	-55 °C	90 %	Braid	28 AWG	5.11 mm	0.201 in	36 AWG	7	Multi-Conductor	Poly-Vinyl Chloride (PVC)	10	0.457 mm	0.018 in	600 V	Slate	Copper Tinned	500 '	152.4 m	Poly-Vinyl Chloride (PVC)	Copper Tinned
ALPHA WIRE M1610 SL005	105 ░C	-55 °C	90 %	Braid	28 AWG	5.11 mm	0.201 in	36 AWG	7	Multi-Conductor	Poly-Vinyl Chloride (PVC)	10	0.457 mm	0.018 in	600 V	Slate	Copper Tinned	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Conductor Multi-Conductor Cable Slate 28 AWG Braid 100.0' (30.5m)
