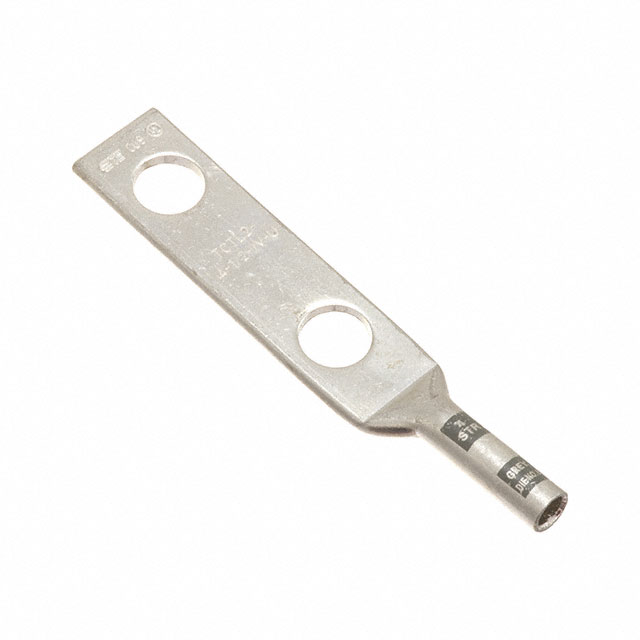

TCTL2-4-1/2-IV-U

Obsolete

TE Energy & Utilities

COMPRESSION CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

TCTL2-4-1/2-IV-U

Obsolete

TE Energy & Utilities

COMPRESSION CONNECTORS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TCTL2-4-1/2-IV-U

Color	Gray
Contact Finish	Tin
Contact Material	Copper
Diameter - Barrel ID [diameter]	6.35 mm
Diameter - Barrel ID [diameter]	0.25 in
Insulation	Non-Insulated
Length - Overall [x]	113.03 mm
Length - Overall [x]	4.45 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	1/2 Stud
Terminal Style	Two Stud Holes
Terminal Type	Standard
Termination	Crimp, Barrel
Width - Outer Edges	20.57 mm
Width - Outer Edges	0.81 in
Wire Gauge	4 AWG

TCTL Series

Part	Terminal Style	Mounting Type	Length - Overall [x]	Length - Overall [x]	Contact Finish	Stud/Tab Size	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Wire Gauge	Wire Gauge	Terminal Type	Termination	Insulation	Color	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Material	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall [x]	Width - Outer Edges	Width - Outer Edges
TE Energy & Utilities TCTL-250-1/2-U	Single Stud Hole	Free Hanging (In-Line)	3.26 in	82.8 mm	Tin	1/2 Stud	0.6 in	15.24 mm	250 kcmil	250 MCM	Standard	Barrel Crimp	Non-Insulated	Green	27.69 mm	1.09 in	Copper
TE Energy & Utilities TCTL-500-5/8-U	Two Stud Holes	Free Hanging (In-Line)	4.4 in	111.76 mm	Tin		0.8 in	20.32 mm	500 kcmil	500 kcmil	Standard	Barrel Crimp	Non-Insulated	Black	39.12 mm	1.54 "	Copper	0.625 Stud
TE Energy & Utilities TCTL2-750-1/2-IV-U	Two Stud Holes	Free Hanging (In-Line)		6.87 in	Tin	1/2 Stud	1.03 in	26.16 mm	750 MCM	750 kcmil	Standard	Barrel Crimp	Non-Insulated	Black			Copper		48.01 mm	1.89 in	174.5 mm
TE Energy & Utilities TCTL-600-5/8-U	Two Stud Holes	Free Hanging (In-Line)	4.772 in	121.2 mm	Tin		0.9 in	22.86 mm		600 MCM (kcmil)	Standard	Barrel Crimp	Non-Insulated	Black			Copper	0.625 Stud	43.43 mm	1.71 in
TE Energy & Utilities TCTL-1000-5/8-U	Two Stud Holes	Free Hanging (In-Line)	5.4 in	137.16 mm	Tin		1.2 in	30.48 mm	1000 kcmil	1000 MCM	Standard	Barrel Crimp	Non-Insulated				Copper	0.625 Stud	55.63 mm	2.19 in
TE Energy & Utilities TCTL-4/0-1/2-U	Single Stud Hole	Free Hanging (In-Line)	3.23 in	82.04 mm	Tin	1/2 Stud	0.6 in	15.24 mm		4 aught AWG	Standard	Barrel Crimp	Non-Insulated	Green	25.4 mm	1 in	Copper
TE Energy & Utilities TCTL2-4-1/2-IV-U	Two Stud Holes	Free Hanging (In-Line)	4.45 in	113.03 mm	Tin	1/2 Stud	0.25 in	6.35 mm		4 AWG	Standard	Barrel Crimp	Non-Insulated	Gray			Copper					20.57 mm	0.81 in
TE Energy & Utilities TCTL-1-5/16-U	Single Stud Hole	Free Hanging (In-Line)	3.1 in	78.74 mm	Tin		0.4 in	10.16 mm		1 AWG	Standard	Barrel Crimp	Non-Insulated	Gray	17.27 mm	0.68 in	Copper	0.3125 Stud
TE Energy & Utilities TCTL2-600-1/2-IV-U	Two Stud Holes	Free Hanging (In-Line)	6.59 in	167.39 mm	Tin	1/2 Stud	0.92 in	23.37 mm		600 MCM (kcmil)	Standard	Barrel Crimp	Non-Insulated	Green			Copper		43.43 mm	1.71 in
TE Energy & Utilities TCTL2-4/0-1/2-IV-U	Two Stud Holes	Free Hanging (In-Line)	5.17 in	131.32 mm	Tin	1/2 Stud	0.56 in	14.22 mm		4 aught AWG	Standard	Barrel Crimp	Non-Insulated	Purple	25.4 mm	1 in	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.28
		10	$ 2.98
		25	$ 2.82
		50	$ 2.76

Description

General part information

TCTL Series

Terminal Connector Rectangular Standard 4 AWG 1/2 Stud
