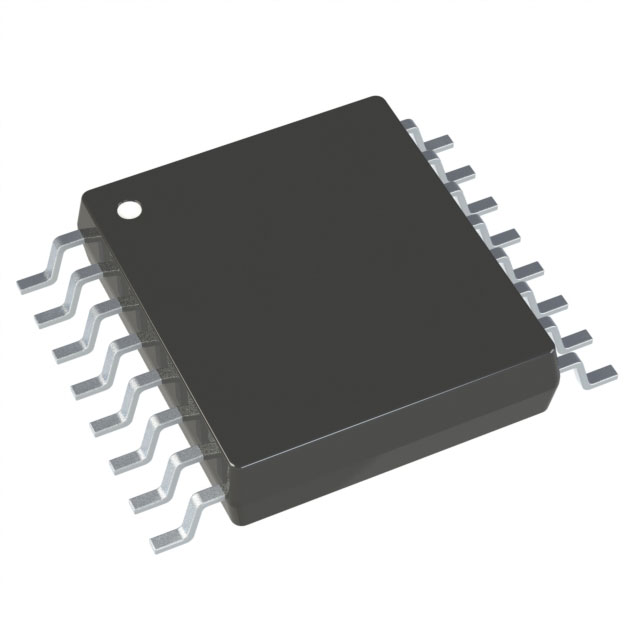

74VHC157FT
ActiveToshiba Semiconductor and Storage
IC MULTIPLEXER 4 X 2:1 16TSSOPB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
74VHC157FT
ActiveToshiba Semiconductor and Storage
IC MULTIPLEXER 4 X 2:1 16TSSOPB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 74VHC157FT |
|---|---|
| Circuit [custom] | 4 |
| Circuit [custom] | 2:1 |
| Current - Output High, Low [custom] | 8 mA |
| Current - Output High, Low [custom] | 8 mA |
| Independent Circuits | 1 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-TSSOP |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Supplier Device Package | 16-TSSOPB |
| Type | Multiplexer |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2 V |
| Voltage Supply Source | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.57 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.28 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.57 | ||
| 10 | $ 0.34 | |||
| 25 | $ 0.28 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.14 | |||
| Tape & Reel (TR) | 2500 | $ 0.12 | ||
| 5000 | $ 0.11 | |||
| 7500 | $ 0.10 | |||
| 12500 | $ 0.10 | |||
| 17500 | $ 0.09 | |||
| 25000 | $ 0.09 | |||
| 62500 | $ 0.08 | |||
Description
General part information
74VHC157 Series
Multiplexer 4 x 2:1 16-TSSOPB
