C1644A.18.10

Active

Prysmian Group

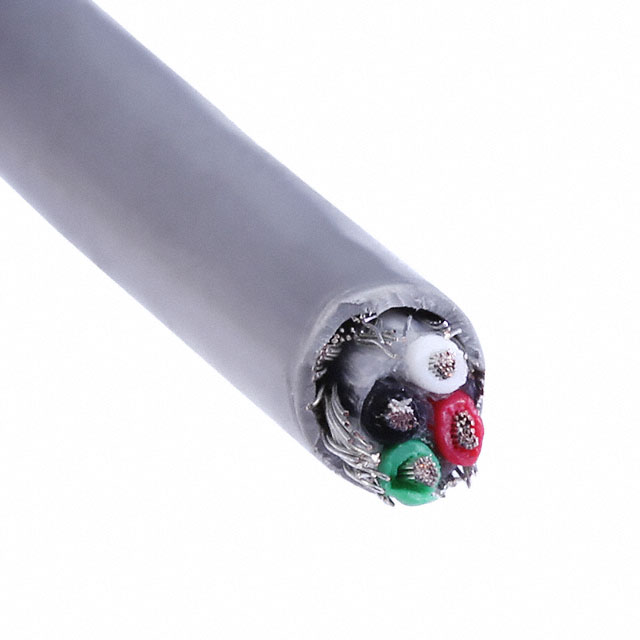

CABLE 4COND 20AWG GRAY SHLD

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 20AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	C1644A.18.10

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Diameter [diameter]	0.255 "
Jacket (Insulation) Diameter [diameter]	6.48 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.737 mm
Jacket (Insulation) Thickness	0.029 in
Jacket Color	Gray
Length	15.24 m
Length [x]	50 ft, 500 '
Length [x]	152.4 m
Number of Conductors	4
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length [x]	Conductor Insulation	Wire Gauge	Conductor Strand	Shield Type	Voltage	Usage	Jacket Color	Cable Type	Shield Material	Conductor Material	Length [x]	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Length
Prysmian Group C1644A.18.10	4	0.737 mm	0.029 in	15.24 m	50 ft 500 '	Polyethylene (PE)	20 AWG	26 34 AWG	Braid	300 V	Communication Control	Gray	Multi-Conductor	Copper Tinned	Copper Tinned	152.4 m	Poly-Vinyl Chloride (PVC)	0.255 "	6.48 mm
Prysmian Group C1644A.41.10	4	0.737 mm	0.029 in	304.8 m		Polyethylene (PE)	20 AWG	26 34 AWG	Braid	300 V	Communication Control	Gray	Multi-Conductor	Copper Tinned	Copper Tinned		Poly-Vinyl Chloride (PVC)	0.255 "	6.48 mm	80 %	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Gray 20 AWG Braid 500.0' (152.4m)
