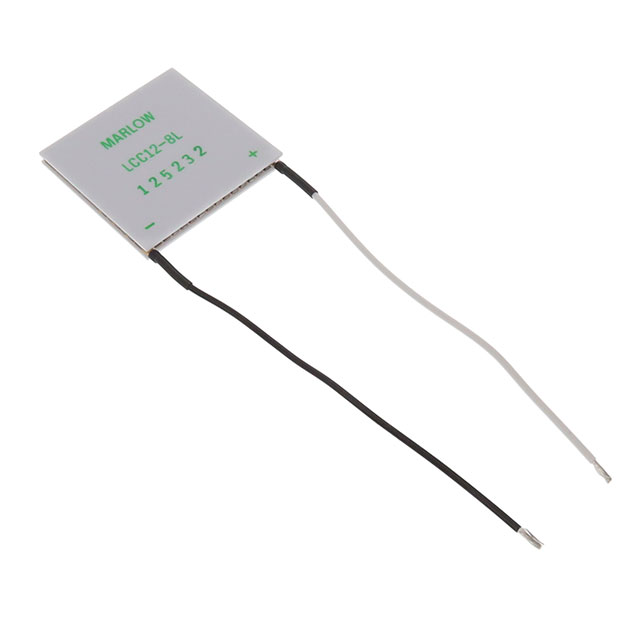

LCC12-8-01L

Active

Marlow Industries, Inc.

TEM THERMOCYCLER 40X40X3.84MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM THERMOCYCLER 40X40X3.84MM

Technical Specifications

Parameters and characteristics for this part

Part	Delta Tmax @ Th	Voltage - Max [Max]	Resistance	Height [z]	Number of Stages	Size / Dimension [y]	Size / Dimension	Size / Dimension [x]	Current - Max [Max]	Features	Qmax @ Th
Marlow Industries, Inc. LCC12-8-01S	66 °C	14.7 V	1.6 Ohms	4.23 mm	1	40.01 mm	Square	40.01 mm	7.4 A	Lead Wires Sealed	71 W
Marlow Industries, Inc. LCC12-8-01LS	66 °C	14.7 V	1.6 Ohms	3.94 mm	1	40.01 mm	Square	40.01 mm	7.4 A	Lapped Lead Wires Sealed	71 W
Marlow Industries, Inc. LCC12-8-01L	66 °C	14.7 V	1.6 Ohms	3.94 mm	1	40.01 mm	Square	40.01 mm	7.4 A	Lapped Lead Wires	71 W
Marlow Industries, Inc. LCC12-8-16LS	66 °C	14.7 V	1.6 Ohms	3.94 mm	1	40.01 mm	Square	40.01 mm	7.4 A	Lapped Lead Wires Sealed	71 W
Marlow Industries, Inc. LCC12-8-01	66 °C	14.7 V	1.6 Ohms	4.23 mm	1	40.01 mm	Square	40.01 mm	7.4 A	Lead Wires	71 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 71.0W @ 27°C 7.4 A 85°C
