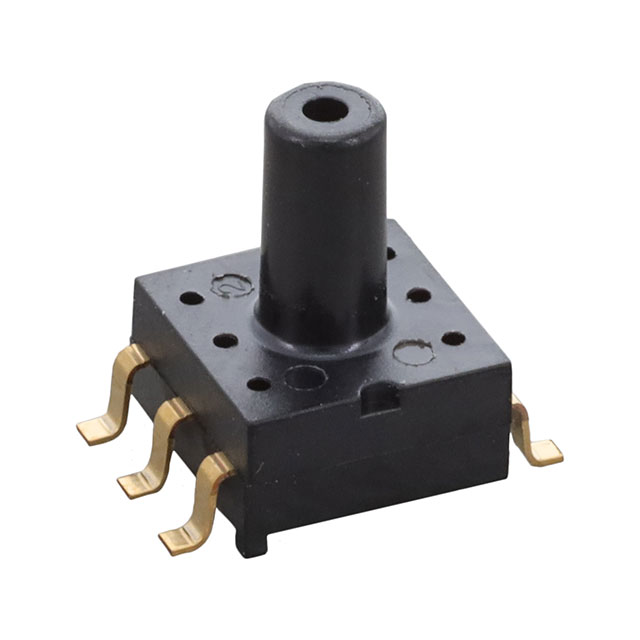

BLC-L05D-U2

Active

Amphenol All Sensors Corporation

SENSOR 0.18PSIG 0.12" .024V

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 0.18PSIG 0.12" .024V

Technical Specifications

Parameters and characteristics for this part

Part	Pressure Type	Port Style	Termination Style	Applications	Output Type	Operating Pressure	Operating Pressure	Port Size	Port Size	Port Size	Output [Max]	Output [Min]	Accuracy	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Amphenol All Sensors Corporation BLC-L05D-D4	Differential	Barbed	Gull Wing	Board Mount	Analog Voltage	1.25 kPa	0.18 PSI	0.12 "	Dual Male Tube	3 mm	24 mV	0 mV	0.5 %	1.8 V	0.9 V	16-SOIC Module Dual Top Ports	7.25 PSI	50 kPa	-25 °C	85 °C	Surface Mount
Amphenol All Sensors Corporation BLC-L05D-U2	Gauge	Barbless	Gull Wing	Board Mount	Analog Voltage	1.25 kPa	0.18 PSI		Male - Tube	0.12 " 3 mm	24 mV	0 mV	0.5 %	1.8 V	0.9 V	6-SMD Gull Wing Top Port	7.25 PSI	50 kPa	-25 °C	85 °C	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	25	$ 24.45

General part information

Pressure Sensor ±0.18PSI (±1.25kPa) Gauge Male - 0.12" (3mm) Tube 0 mV ~ 24 mV 6-SMD, Gull Wing, Top Port
