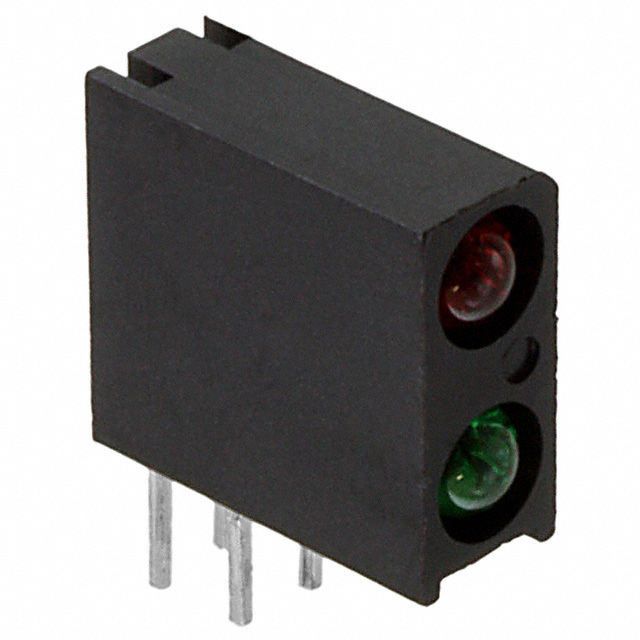

5532212100F

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN/RED RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5532212100F

Active

DIALIGHT

LED CBI 3MM BI-LVL GRN/RED RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5532212100F

Color	Red (x 1), Green (x 1)
Configuration	2 High
Current [custom]	30 mA
Current [custom]	30 mA
Millicandela Rating [custom]	50 mcd
Millicandela Rating [custom]	29 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	45 °
Voltage Rating	2.1 V, 2 V
Wavelength - Peak	565 nm, 635 nm

5532212 Series

Part	Color	Current [custom]	Current [custom]	Viewing Angle	Configuration	Millicandela Rating [custom]	Millicandela Rating [custom]	Mounting Type	Wavelength - Peak	Voltage Rating
DIALIGHT 5532212100F	Green (x 1) Red (x 1)	30 mA	30 mA	45 °	2 High	50 mcd	29 mcd	Through Hole Right Angle	565 nm 635 nm	2 V 2.1 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.33
		50	$ 0.84
		100	$ 0.62
		500	$ 0.59

Description

General part information

5532212 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Red (x 1) 2.1V Green, 2V Red 30mA Green, 30mA Red Through Hole, Right Angle

Documents

Technical documentation and resources
