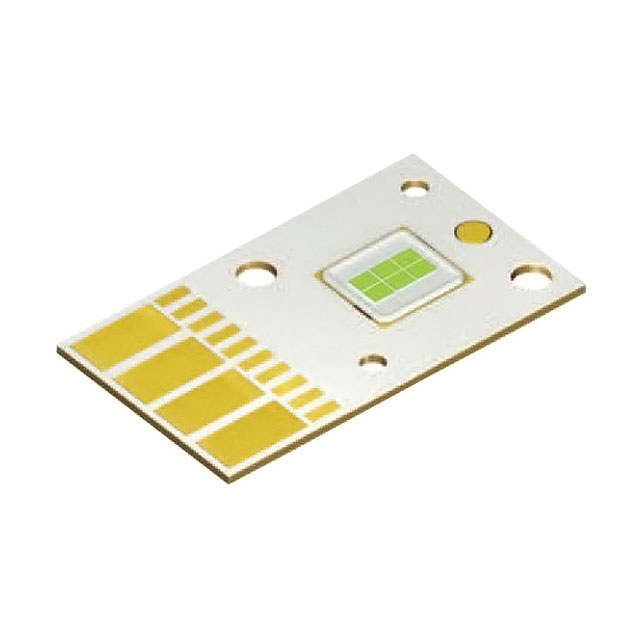

LE CG P3A 01-6V6W-1

Obsolete

ams-OSRAM USA INC.

LED MOD OSRAM OSTAR GREEN RECT

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

LED MOD OSRAM OSTAR GREEN RECT

Technical Specifications

Parameters and characteristics for this part

Specification	LE CG P3A 01-6V6W-1

Color	Green
Configuration	Rectangle
Height [z]	1.8 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	86 lm/W
Luminous Flux @ Current/Temperature	11000 lm
Size / Dimension [x]	27 mm
Size / Dimension [y]	15.5 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.55 V
Wavelength	520 nm

Part	Voltage - Forward (Vf) (Typ)	Configuration	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Color	Size / Dimension [y]	Size / Dimension [x]	Lens Type	Wavelength	Height [z]	Type	Viewing Angle
ams-OSRAM USA INC. LE CG P3A 01-6V6W-1	3.55 V	Rectangle	11000 lm	86 lm/W	Green	15.5 mm	27 mm	Flat	520 nm	1.8 mm	LED Module	120 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module OSRAM OSTAR Green Rectangle
