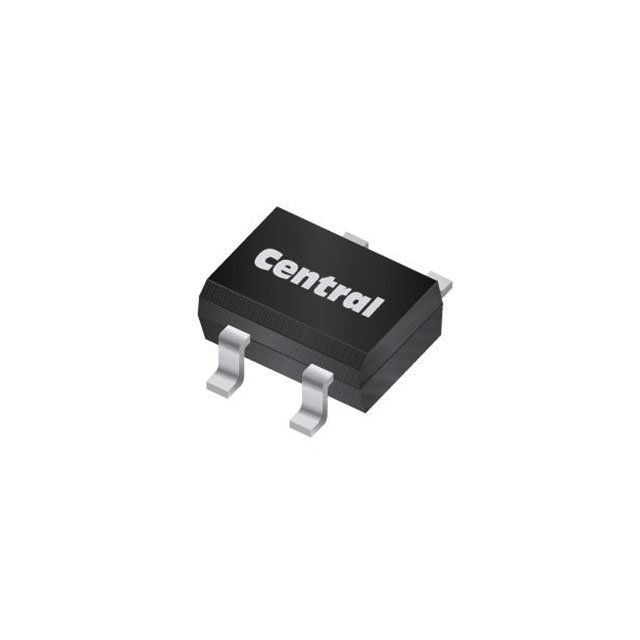

CBRHDSH1-40L TR13 PBFREE
ActiveCentral Semiconductor Corp
BRIDGE RECT 1P 40V 1.2A 4HD DIP
Deep-Dive with AI
Search across all available documentation for this part.
CBRHDSH1-40L TR13 PBFREE
ActiveCentral Semiconductor Corp
BRIDGE RECT 1P 40V 1.2A 4HD DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CBRHDSH1-40L TR13 PBFREE |
|---|---|
| Current - Average Rectified (Io) | 1.2 A |
| Current - Reverse Leakage @ Vr | 50 µA |
| Diode Type | Single Phase |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -50 °C |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-HD DIP |
| Technology | Schottky |
| Voltage - Forward (Vf) (Max) @ If | 440 mV |
| Voltage - Peak Reverse (Max) | 40 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.70 | |
| 10 | $ 0.57 | |||
| 100 | $ 0.45 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.37 | |||
| Digi-Reel® | 1 | $ 0.70 | ||
| 10 | $ 0.57 | |||
| 100 | $ 0.45 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.37 | |||
| Tape & Reel (TR) | 3000 | $ 0.37 | ||
Description
General part information
CBRHDSH1 Series
Bridge Rectifier Single Phase Schottky 40 V Surface Mount 4-HD DIP
