M7766-05

Obsolete

Harwin Inc.

JUMPER SKT CLOSED TOP RED

Search across all available documentation for this part.

Obsolete

Harwin Inc.

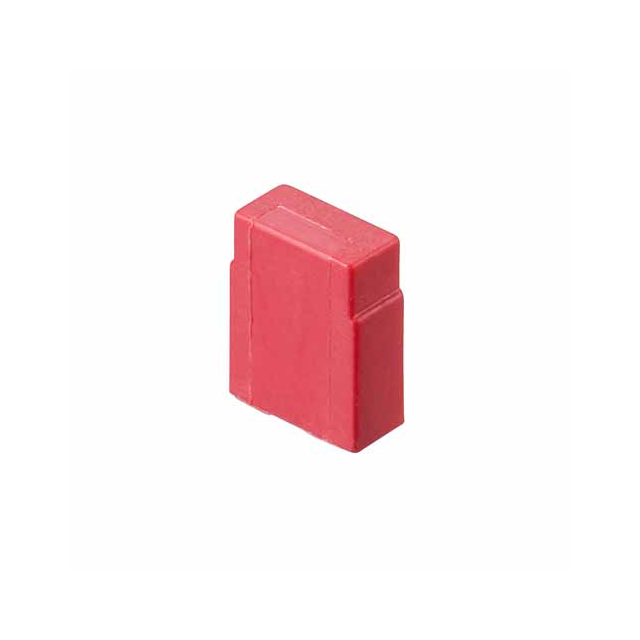

JUMPER SKT CLOSED TOP RED

Technical Specifications

Parameters and characteristics for this part

Specification	M7766-05

Color	Red
Contact Finish	Gold
Contact Finish Thickness	0.13 µm
Contact Finish Thickness	5.11 µin
Current Rating (Amps)	3 A
Gender	Female Sockets
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Closed Top
Voltage Rating	250 VDC

Part	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Voltage Rating	Contact Finish	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Gender	Material Flammability Rating	Pitch [x]	Pitch [x]	Color	Type
Harwin Inc. M7766-05	0.13 µm	5.11 µin	3 A	250 VDC	Gold	1 x 2	2	Female Sockets	UL94 V-0	2.54 mm	0.1 in	Red	Closed Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 (1 x 2) Position Shunt Connector Red Closed Top 0.100" (2.54mm) Gold
