TL50GYR

Active

BANNER ENGINEERING

SIGNAL TOWER, EZ-LIGHT, 3 TIERS, GREEN, RED, YELLOW, 50MM DIA., 30VDC, 27VAC, IP67

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Technical Data Sheet EN +1

TL50GYR

Active

BANNER ENGINEERING

SIGNAL TOWER, EZ-LIGHT, 3 TIERS, GREEN, RED, YELLOW, 50MM DIA., 30VDC, 27VAC, IP67

Deep-Dive with AI

DocumentsDrawing EN Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TL50GYR

Function - Lighting	Steady
Ingress Protection	IP67 - Dust Tight, Waterproof
Light Color	Red, Green, Yellow
Number of Stacks	3
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply	24 VAC
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	18 V

TL50GY Series

Part	Number of Stacks	Function - Lighting	Ingress Protection	Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply	Voltage - Supply [Min]	Light Color	Function - Audible	Features
BANNER ENGINEERING TL50GYR	3	Steady	IP67 - Dust Tight Waterproof	Complete Unit	Wire Leads	-40 °C	50 °C	30 VDC	24 VAC	18 V	Green Red Yellow
BANNER ENGINEERING TL50GYAQ	2	Steady	IP50	Complete Unit	Connector	-20 C	50 °C	30 VDC		18		Multiple	Alarm
BANNER ENGINEERING TL50GYRALS	3	Steady	IP67 - Dust Tight Waterproof	Complete Unit	Wire Leads	-20 C	50 °C	24 VAC	30 VDC	18 VAC	Green Red Yellow	Continuous	Alarm
BANNER ENGINEERING TL50GYRAOS3IQP	3	Steady	IP67 - Dust Tight Waterproof	Complete Unit	Connector	-20 C	50 °C	24 VAC	30 VDC	18 VAC	Green Red Yellow	Pulse	Adjustable Volume Alarm
BANNER ENGINEERING TL50GYRALS3Q	3	Steady	IP67 - Dust Tight Waterproof	Complete Unit	Connector	-20 C	50 °C	30 VDC		18	Green Red Yellow	Multiple	Alarm
BANNER ENGINEERING TL50GYRBQ	4	Steady	IP67 - Dust Tight Waterproof	Complete Unit	Connector	-40 °C	50 °C	24 VAC	30 VDC	18 VAC	Blue Green Red Yellow
BANNER ENGINEERING TL50GYRALS3	3	Steady	IP67 - Dust Tight Waterproof	Complete Unit	Wire Leads	-20 C	50 °C	24 VAC	30 VDC	18 VAC	Green Red Yellow	Pulse	Alarm
BANNER ENGINEERING TL50GYRQ-17071	3	Steady	IP67 - Dust Tight Waterproof	Complete Unit	Connector	-40 °C	50 °C	24 VAC	30 VDC	18 VAC	Green Red Yellow
BANNER ENGINEERING TL50GYRMQ	4	Steady	IP67 - Dust Tight Waterproof	Complete Unit	Connector	-20 C	50 °C	24 VAC	30 VDC	18 VAC	Green Magenta Red Yellow
BANNER ENGINEERING TL50GYRWB	5	Steady	IP67 - Dust Tight Waterproof	Complete Unit	Wire Leads	-40 °C	50 °C	24 VAC	30 VDC	18 VAC	Blue Green Red White Yellow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 153.00
Newark	Each	1	$ 148.87

Description

General part information

TL50GY Series

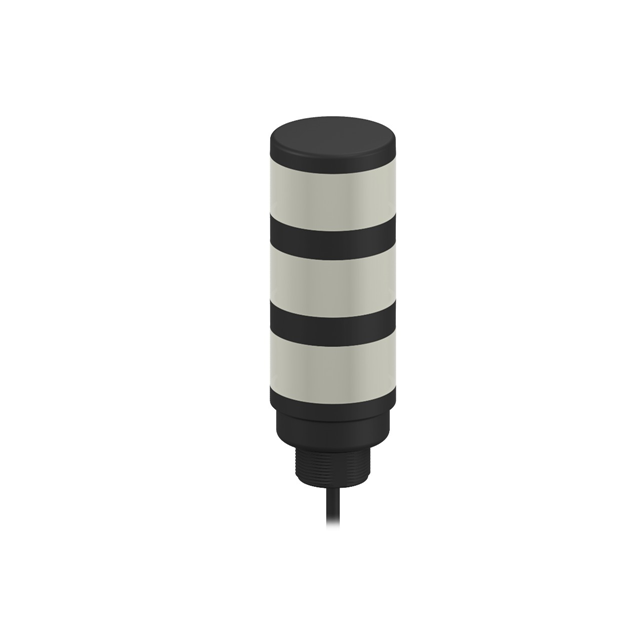

The TL50GYR is a 3-tier EZ-LIGHT® Tower Light with integral 4-pin M12/Euro-style male quick disconnect (QD) and bimodal (NPN or PNP) input.

Documents

Technical documentation and resources

Drawing EN

Datasheet

Technical Data Sheet EN

Datasheet
