7945001-601

Laird Thermal Systems, Inc.

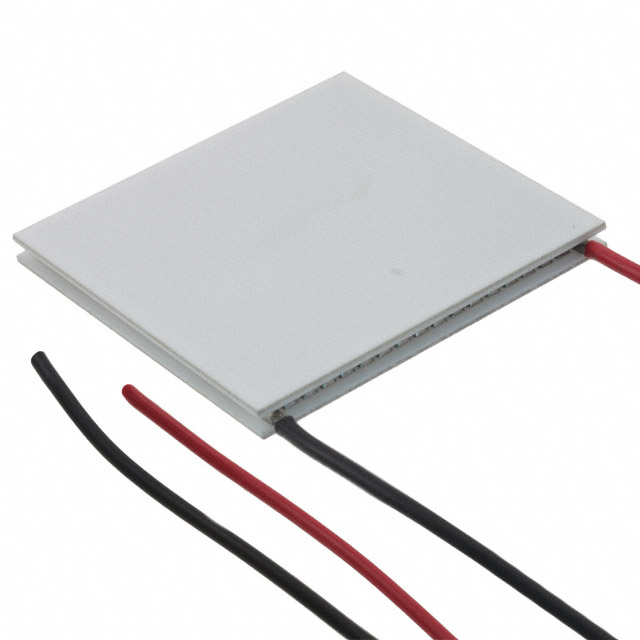

PELTIER MOD ZT7,16,F1,4040,TA,W8

Search across all available documentation for this part.

Laird Thermal Systems, Inc.

PELTIER MOD ZT7,16,F1,4040,TA,W8

Technical Specifications

Parameters and characteristics for this part

Part	Current - Max [Max]	Operating Temperature	Voltage - Max [Max]	Height [z]	Resistance	Qmax @ Th	Size / Dimension [y]	Size / Dimension [x]	Features	Delta Tmax @ Th	Number of Stages
Laird Thermal Systems, Inc. 7945001-610	6.7 A	80 °C	20 V	3.3 mm	2.53 Ohms	83.9 W	40 mm	40 mm	Lapped Lead Wires	72 °C	1
Laird Thermal Systems, Inc. 7945001-601	6.7 A	80 °C	20 V	3.3 mm	2.53 Ohms	83.9 W	40 mm	40 mm	Lead Wires Non-Sealed	72 °C	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.88

General part information

Peltier Module 83.9W @ 25°C 6.7 A 80°C
