100025333

Active

Telegartner Inc

ADAPT STR 4.3-10MS - 2.2-5F

Search across all available documentation for this part.

Active

Telegartner Inc

ADAPT STR 4.3-10MS - 2.2-5F

Technical Specifications

Parameters and characteristics for this part

Specification	100025333

Adapter Series [Max]	2.2/5
Adapter Series [Min]	4.3/10
Adapter Type	Plug to Jack
Body Material	Brass
Center Contact Material	Beryllium Copper
Conversion Type	Between Series
Convert From (Adapter End)	4.3/10 Plug, Male Pin
Convert To (Adapter End)	2.2/5 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Center Gender	Mounting Type	Adapter Type	Ingress Protection	Body Material	Conversion Type	Adapter Series [Max]	Adapter Series [Min]	Frequency - Max [Max]	Impedance	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Convert From (Adapter End)	Convert To (Adapter End)	Style	Center Contact Material
Telegartner Inc 100025330	Male to Female	Free Hanging (In-Line)	Plug to Jack	IP68 - Dust Tight Waterproof	Beryllium Copper	Between Series	2.2/5	4.3/10	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	90 °C	-55 °C	2.2/5 Plug Male Pin	4.3/10 Jack Female Socket	Straight
Telegartner Inc 100025333		Free Hanging (In-Line)	Plug to Jack	IP68 - Dust Tight Waterproof	Brass	Between Series	2.2/5	4.3/10	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	90 °C	-55 °C	4.3/10 Plug Male Pin	2.2/5 Jack Female Socket	Straight	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

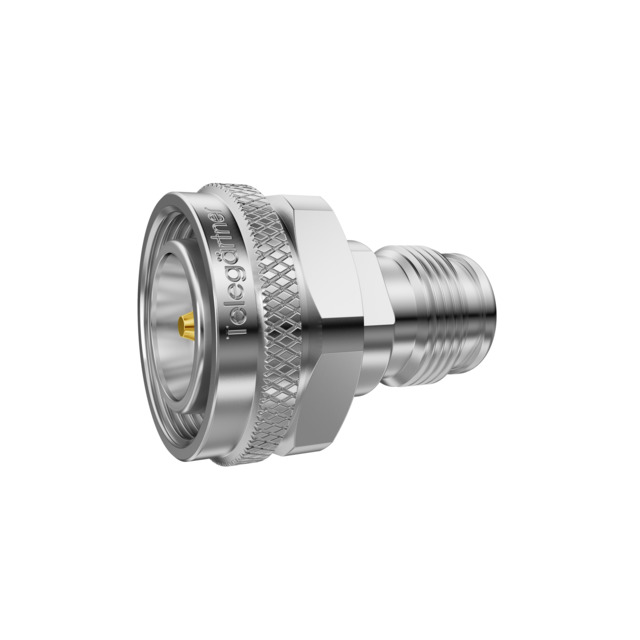

Adapter Coaxial Connector 4.3/10 Plug, Male Pin To 2.2/5 Jack, Female Socket 50 Ohms
