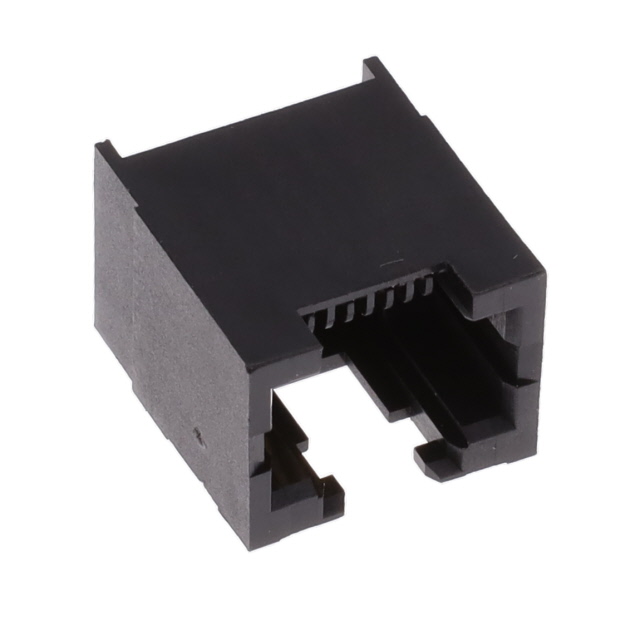

RJLSE4008101

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A UNSHLD

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A UNSHLD

Technical Specifications

Parameters and characteristics for this part

Specification	RJLSE4008101

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Features	Solder Retention
Housing Material	Polyamide (PA), Nylon
LED Color	Does Not Contain LED
Mounting Type	Surface Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	90 °
Shielding	Unshielded
Tab Direction	Down
Termination	Solder

Part	Number of Ports	Number of Positions/Contacts	Contact Finish Thickness	Shielding	Housing Material	Contact Finish	Orientation	Number of Rows	Tab Direction	Connector Type	Contact Material	Features	Termination	LED Color	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol ICC (Commercial Products) RJLSE4018101T	1	8p8c (RJ45 Ethernet)	Flash	Shielded	Polyamide (PA) Nylon	Gold	90 °	1	Down	Jack	Phosphor Bronze	Solder Retention	Solder	Does Not Contain LED	Surface Mount	85 °C	-55 °C
Amphenol ICC (Commercial Products) RJLSE4038101	1	8p8c (RJ45 Ethernet)	Flash	Shielded	Polyamide (PA) Nylon	Gold	90 °	1	Down	Jack	Phosphor Bronze	Solder Retention	Solder	Does Not Contain LED	Surface Mount	85 °C	-55 °C
Amphenol ICC (Commercial Products) RJLSE4008101	1	8p8c (RJ45 Ethernet)	Flash	Unshielded	Polyamide (PA) Nylon	Gold	90 °	1	Down	Jack	Phosphor Bronze	Solder Retention	Solder	Does Not Contain LED	Surface Mount	85 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded
