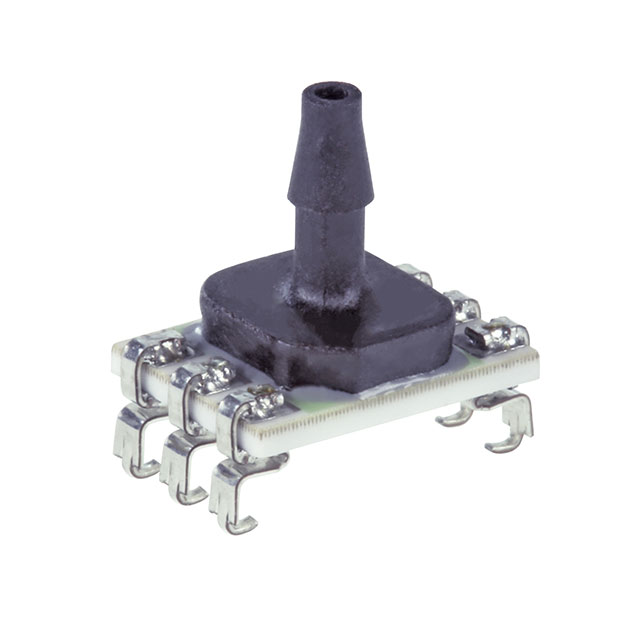

ABPMANN004BGAA5

Active

Honeywell Sensing and Productivity Solutions

SENSOR 58.02PSIG 0.08" 4.5V 6SMD

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 58.02PSIG 0.08" 4.5V 6SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ABPMANN004BGAA5

Accuracy	0.25 %
Applications	Medical Ventilation
Features	Temperature Compensated, Amplified Output
Mounting Type	Surface Mount
Operating Pressure	4 bar
Operating Pressure	58.02 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	6-SMD Module
Port Size	Male
Port Size [x]	1.93 mm
Port Size [x]	0.08 "
Port Style	Barbed
Pressure Type	Vented Gauge
Supplier Device Package	6-SMD
Termination Style	J Lead

Part	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure	Operating Pressure	Termination Style	Pressure Type	Accuracy	Supplier Device Package	Features	Mounting Type	Port Style	Output [Min]	Output [Max]	Output Type	Applications	Port Size [x]	Port Size	Port Size [x]	Package / Case
Honeywell Sensing and Productivity Solutions ABPMANN004BGAA5	85 °C	-40 °C	4 bar	58.02 PSI	J Lead	Vented Gauge	0.25 %	6-SMD	Amplified Output Temperature Compensated	Surface Mount	Barbed	0.5 V	4.5 V	Analog Voltage	Medical Ventilation	1.93 mm	Male	0.08 "	6-SMD Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 58.02PSI (400kPa) Vented Gauge Male - 0.08" (1.93mm) Tube 0.5 V ~ 4.5 V 6-SMD Module
