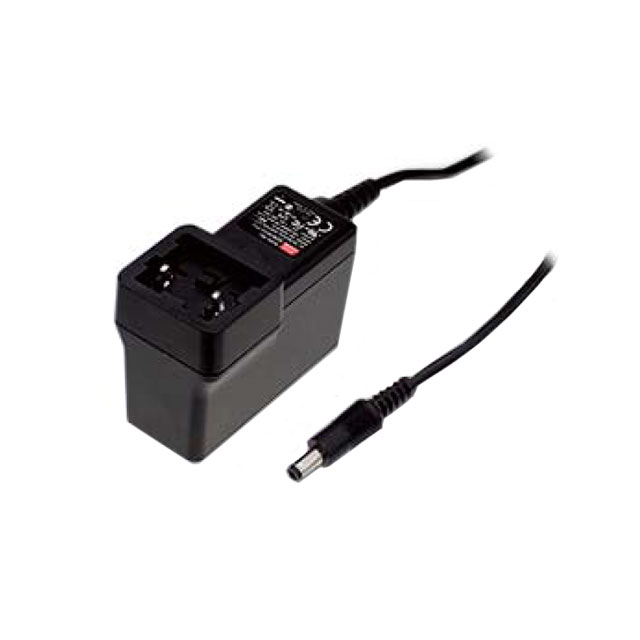

GEM60I12-P1J
ObsoleteMEAN WELL USA Inc.
AC/DC WALL MOUNT ADAPTER 12V 54W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GEM60I12-P1J
ObsoleteMEAN WELL USA Inc.
AC/DC WALL MOUNT ADAPTER 12V 54W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GEM60I12-P1J |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, FCC, CE, TUV, CB |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Current - Output (Max) [Max] | 4.5 A |
| Efficiency | 88 % |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade, Fixed Blade |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 54 W |
| Region Utilized | International |
| Size / Dimension [x] | 75.5 mm |
| Size / Dimension [x] | 2.97 in |
| Size / Dimension [y] | 1.54 " |
| Size / Dimension [y] | 39.1 mm |
| Size / Dimension [z] | 56.2 mm |
| Size / Dimension [z] | 2.21 " |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.70 | |
Description
General part information
GEM60I12 Series
12V 54 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade, Multi-Blade (Sold Separately) Input
