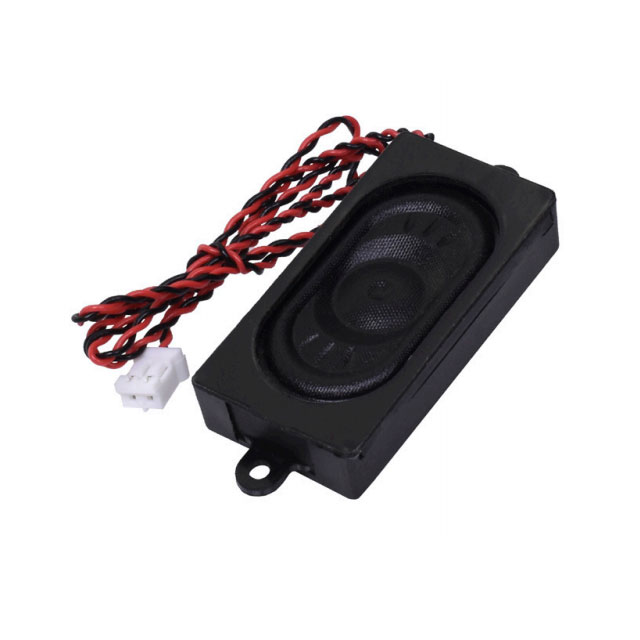

CES-39209-28PM

Active

CUI Devices

SPEAKER 8OHM 2W TOP PORT 88DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 2W TOP PORT 88DB

Technical Specifications

Parameters and characteristics for this part

Specification	CES-39209-28PM

Distortion Rating [Max]	10 %
Efficiency - dBA	88 dBA
Efficiency - Testing	100mW/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	1200 Hz
Frequency Range [Max]	20 kHz
Frequency Range [Min]	960 Hz
Height - Seated (Max) [Max]	9.3 mm
Height - Seated (Max) [Max]	0.366 in
Impedance	8 Ohms
Material - Cone	Cloth
Material - Magnet	Nd-Fe-B
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Port Location	Top
Power - Max [Max]	2.5 W
Power - Rated	2 W
Shape	Rectangular
Size / Dimension [x]	1.732 "
Size / Dimension [x]	44 mm
Size / Dimension [y]	0.787 in
Size / Dimension [y]	20 mm
Technology	Magnetic
Termination	Wire Leads with Connector
Type	Enclosure Included, General Purpose

Part	Frequency Range [Min]	Frequency Range [Max]	Material - Magnet	Efficiency - Type	Power - Rated	Efficiency - dBA	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Distortion Rating [Max]	Shape	Impedance	Efficiency - Testing	Frequency - Self Resonant	Material - Cone	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Power - Max [Max]	Technology	Port Location	Type
CUI Devices CES-39209-28PM	960 Hz	20 kHz	Nd-Fe-B	Sound Pressure Level (SPL)	2 W	88 dBA	0.787 in	1.732 "	20 mm	44 mm	9.3 mm	0.366 in	10 %	Rectangular	8 Ohms	100mW/100mm	1200 Hz	Cloth	-20 C	60 °C	Wire Leads with Connector	2.5 W	Magnetic	Top	Enclosure Included General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms General Purpose, Enclosure Included Speaker 2 W 960 Hz ~ 20 kHz Top Rectangular
