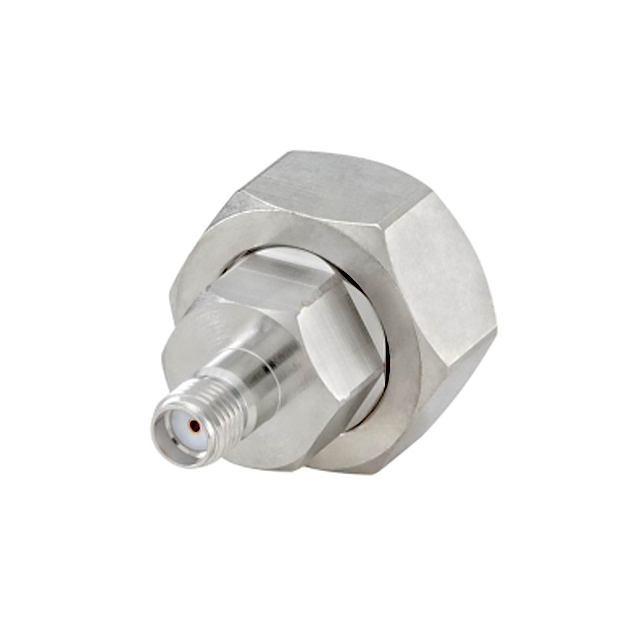

32K164-S00N1

Active

Rosenberger

ADAPT SMA JACK - 4.3/10 PLUG

Search across all available documentation for this part.

Active

Rosenberger

ADAPT SMA JACK - 4.3/10 PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	32K164-S00N1

Adapter Series	SMA to 4.3/10
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Silver, Gold
Conversion Type	Between Series
Convert From (Adapter End)	4.3/10 Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Center Contact Plating	Frequency - Max [Max]	Body Material	Adapter Series	Convert From (Adapter End)	Convert To (Adapter End)	Dielectric Material	Mounting Type	Impedance	Center Contact Material	Style	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Conversion Type	Adapter Type
Rosenberger 32K164-S00N1	Gold Silver	12 GHz	Brass	SMA to 4.3/10	4.3/10 Plug Male Pin	Female Socket SMA Jack	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	50 Ohms	Beryllium Copper Brass	Straight	90 °C	-55 °C	White Bronze	Between Series	Plug to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 4.3/10 Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
