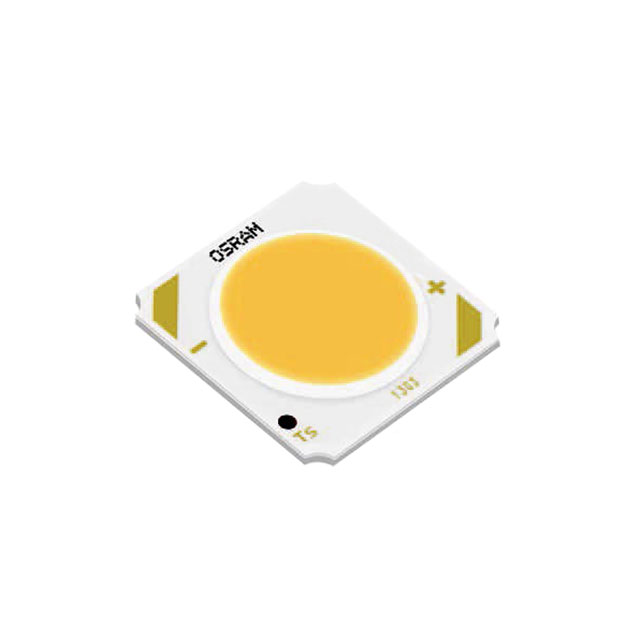

GW KAGHB1.CM-RSRU-40H3

Active

ams-OSRAM USA INC.

LED COB SOLERIQ WHT SQ 4000K

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED COB SOLERIQ WHT SQ 4000K

Technical Specifications

Parameters and characteristics for this part

Specification	GW KAGHB1.CM-RSRU-40H3

CCT (K)	4000 K
Color	Neutral, White
Configuration	Square
CRI (Color Rendering Index)	90
Current - Max [Max]	720 mA
Current - Test	500 mA
Height [z]	1.55 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	13.2 mm
Lumens/Watt @ Current - Test	100 lm/W
Luminous Flux @ Current/Temperature	1600 lm
Size / Dimension [x]	18 mm
Size / Dimension [y]	18 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	32 V

Part	Luminous Flux @ Current/Temperature	Type	Size / Dimension [y]	Size / Dimension [x]	Lens Type	CCT (K)	Lumens/Watt @ Current - Test	Height [z]	Color	Light Emitting Surface (LES) [diameter]	Current - Max [Max]	Viewing Angle	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Configuration	Current - Test
ams-OSRAM USA INC. GW KAGHB1.CM-RSRU-40H3	1600 lm	Chip On Board (COB)	18 mm	18 mm	Flat	4000 K	100 lm/W	1.55 mm	Neutral White	13.2 mm	720 mA	120 °	32 V	90	Square	500 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) SOLERIQ® S 13 White, Neutral Square
