Q-3B04T0005012I

Active

Amphenol Custom Cable

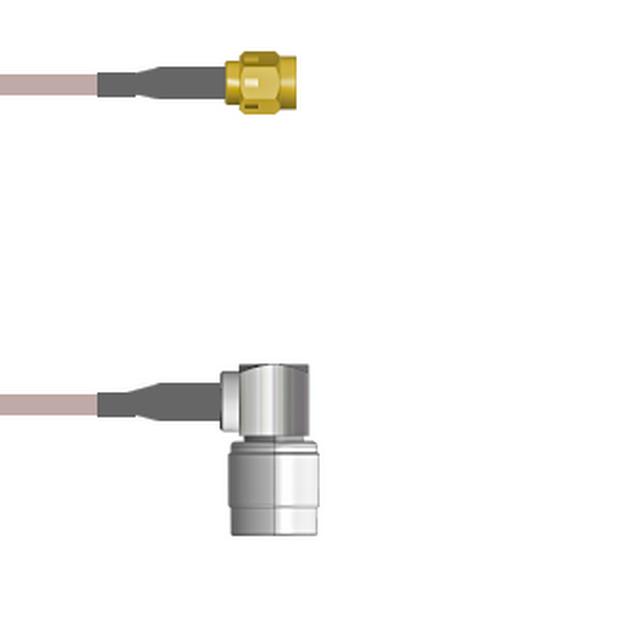

CBL ASSY SMA-TNC PLUG-PLUG 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-3B04T0005012I

Active

Amphenol Custom Cable

CBL ASSY SMA-TNC PLUG-PLUG 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3B04T0005012I

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	SMA to TNC

Q-3B04T0 Series

Part	Overall Impedance	2nd Contact Gender	Color	2nd Connector	1st Connector	Connector Impedance	Features	Frequency - Max [Max]	Length	Length	Length	1st Contact Gender	Cable Type	2nd Connector Mounting Type	Style	1st Connector Mounting Type	Cable Impedance	Length [x]	Length [x]
Amphenol Custom Cable Q-3B04T0005060I	50 Ohms	Male	Copper	TNC Plug Right Angle	SMA Plug	50 Ohms	Shielded	3 GHz	5 ft	1.5 m	5 '	Male	RG-316	Free Hanging (In-Line)	SMA to TNC	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-3B04T0005012I	50 Ohms	Male	Copper	TNC Plug Right Angle	SMA Plug	50 Ohms	Shielded	3 GHz		304.8 mm	12 "	Male	RG-316	Free Hanging (In-Line)	SMA to TNC	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-3B04T0005003M	50 Ohms	Male	Copper	TNC Plug Right Angle	SMA Plug	50 Ohms	Shielded	3 GHz	9.8 '	3 m	118.1 in	Male	RG-316	Free Hanging (In-Line)	SMA to TNC	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-3B04T0005024I	50 Ohms	Male	Copper	TNC Plug Right Angle	SMA Plug	50 Ohms	Shielded	3 GHz		609.6 mm	24 "	Male	RG-316	Free Hanging (In-Line)	SMA to TNC	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-3B04T0005036I	50 Ohms	Male	Copper	TNC Plug Right Angle	SMA Plug	50 Ohms	Shielded	3 GHz		91.44 cm	36 in	Male	RG-316	Free Hanging (In-Line)	SMA to TNC	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-3B04T00052.5M	50 Ohms	Male	Copper	TNC Plug Right Angle	SMA Plug	50 Ohms	Shielded	3 GHz	8.2 '	2.5 m	98.4 in	Male	RG-316	Free Hanging (In-Line)	SMA to TNC	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-3B04T0005084I	50 Ohms	Male	Copper	TNC Plug Right Angle	SMA Plug	50 Ohms	Shielded	3 GHz	7 ft	2.1 m	84 in	Male	RG-316	Free Hanging (In-Line)	SMA to TNC	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-3B04T0005072I	50 Ohms	Male	Copper	TNC Plug Right Angle	SMA Plug	50 Ohms	Shielded	3 GHz	6 ft	1.8 m	72 in	Male	RG-316	Free Hanging (In-Line)	SMA to TNC	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-3B04T0005018I	50 Ohms	Male	Copper	TNC Plug Right Angle	SMA Plug	50 Ohms	Shielded	3 GHz				Male	RG-316	Free Hanging (In-Line)	SMA to TNC	Free Hanging (In-Line)	50 Ohms	457.2 mm	457.2 mm
Amphenol Custom Cable Q-3B04T0005006I	50 Ohms	Male	Copper	TNC Plug Right Angle	SMA Plug	50 Ohms	Shielded	3 GHz		152.4 mm	6 in	Male	RG-316	Free Hanging (In-Line)	SMA to TNC	Free Hanging (In-Line)	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 66.71
		25	$ 65.41
		50	$ 64.11
		100	$ 62.81
		250	$ 61.51

Description

General part information

Q-3B04T0 Series

Cable Assembly Coaxial SMA to TNC RG-316 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
