SPMWH1228FD5WAQKS4

Samsung Semiconductor, Inc.

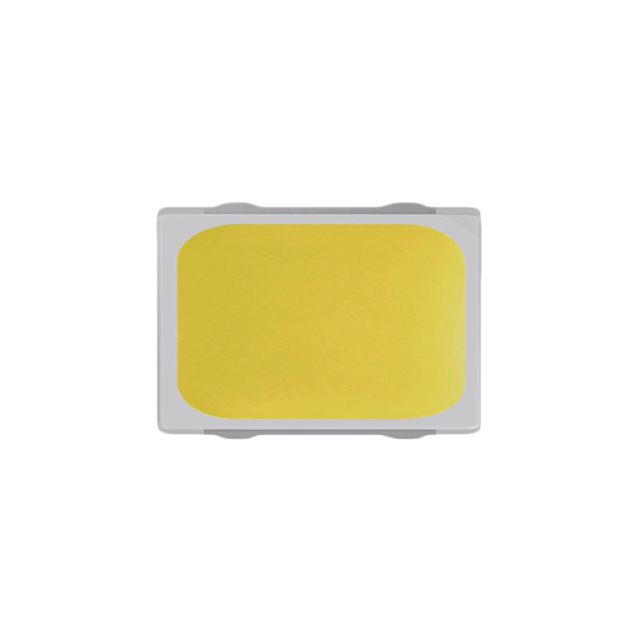

LED LM281B COOL WHITE 5700K 2835

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SPMWH1228FD5WAQKS4

Samsung Semiconductor, Inc.

LED LM281B COOL WHITE 5700K 2835

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPMWH1228FD5WAQKS4

CCT (K)	5700 K
Color	Cool, White
CRI (Color Rendering Index)	80
Current - Max [Max]	160 mA
Current - Test	150 mA
Flux @ 25°C, Current - Test	68 lm
Height - Seated (Max) [Max] [z]	0.03 in
Height - Seated (Max) [Max] [z]	0.75 mm
Lumens/Watt @ Current - Test	146 lm/W
Mounting Type	Surface Mount
Package / Case	1113 (2835 Metric)
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Supplier Device Package	2835
Thermal Resistance of Package [custom]	25 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.1 V

SPMWH1228 Series

...

Part	Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Mounting Type	Thermal Resistance of Package [custom]	Viewing Angle	CRI (Color Rendering Index)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	CCT (K)	Color	Package / Case	Lumens/Watt @ Current - Test	Flux @ 25°C, Current - Test	Thermal Resistance of Package [diameter]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]
Samsung Semiconductor, Inc. SPMWH1228FD5WAW0SA	150 mA	57 lm	53 lm	160 mA	0.11 in	2.8 mm	0.138 "	3.5 mm	2835	3.1 V	Surface Mount	25 °C/W	120 °	80	0.03 in	0.75 mm	2700 K	Warm White	1113 (2835 Metric)	118 lm/W
Samsung Semiconductor, Inc. SPMWH1228FD5WAQKS4	150 mA			160 mA	0.11 in	2.8 mm	0.138 "	3.5 mm	2835	3.1 V	Surface Mount	25 °C/W	120 °	80	0.03 in	0.75 mm	5700 K	Cool White	1113 (2835 Metric)	146 lm/W	68 lm
Samsung Semiconductor, Inc. SPMWH1228FD5WAWKSE	150 mA			160 mA	0.11 in	2.8 mm	0.138 "	3.5 mm	2835	3.1 V	Surface Mount	25 °C/W	120 °	80	0.03 in	0.75 mm	2700 K	Warm White	1113 (2835 Metric)	135 lm/W	63 lm
Samsung Semiconductor, Inc. SPMWH1228FD5WAUMSC	150 mA			160 mA	0.11 in	2.8 mm	0.138 "	3.5 mm	2835	3.1 V	Surface Mount	25 °C/W	120 °	80	0.03 in	0.75 mm	3500 K	Warm White	1113 (2835 Metric)	138 lm/W	64 lm
Samsung Semiconductor, Inc. SPMWH1228FD5WAT0SG	150 mA			160 mA	0.11 in	2.8 mm	0.138 "	3.5 mm	2835	3 V	Surface Mount	25 °C/W	120 °	80	0.03 in	0.75 mm	4000 K	Neutral White	1113 (2835 Metric)	160 lm/W	72 lm
Samsung Semiconductor, Inc. SPMWH1228FD7WAQMSG	150 mA			160 mA	0.11 in	2.8 mm	0.138 "	3.5 mm	2835	3 V	Surface Mount	25 °C/W	120 °	90	0.03 in	0.75 mm	5700 K	Cool White	1113 (2835 Metric)	136 lm/W	62 lm
Samsung Semiconductor, Inc. SPMWH1228FD7WAR0S4	150 mA			160 mA	0.11 in	2.8 mm	0.138 "	3.5 mm	2835	3.1 V	Surface Mount		120 °	90	0.03 in	0.75 mm	5000 K	Cool White	1113 (2835 Metric)	135 lm/W	63 lm	17 °C/W
Samsung Semiconductor, Inc. SPMWH1228FD5WARKS3	150 mA			160 mA	0.11 in	2.8 mm	0.138 "	3.5 mm	2835	3.1 V	Surface Mount	25 °C/W	120 °	80	0.03 in	0.75 mm	5000 K	Cool White	1113 (2835 Metric)	140 lm/W	65 lm		67 lm	63 lm
Samsung Semiconductor, Inc. SPMWH1228FD7WAUMSA	150 mA	51 lm	48 lm	160 mA	0.11 in	2.8 mm	0.138 "	3.5 mm	2835	3.1 V	Surface Mount	25 °C/W	120 °	90	0.03 in	0.75 mm	3500 K	Warm White	1113 (2835 Metric)	108 lm/W	50 lm
Samsung Semiconductor, Inc. SPMWH1228FD7WAPKS2	150 mA	56 lm	52 lm	160 mA	0.11 in	2.8 mm	0.138 "	3.5 mm	2835	3.1 V	Surface Mount		120 °	90	0.03 in	0.75 mm	6500 K	Cool White	1113 (2835 Metric)	116 lm/W	54 lm	17 °C/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	40000	$ 0.04
		80000	$ 0.03
		120000	$ 0.03

Description

General part information

SPMWH1228 Series

LED Lighting LM281B White, Cool 5700K 3.1V 150mA 120° 1113 (2835 Metric)
