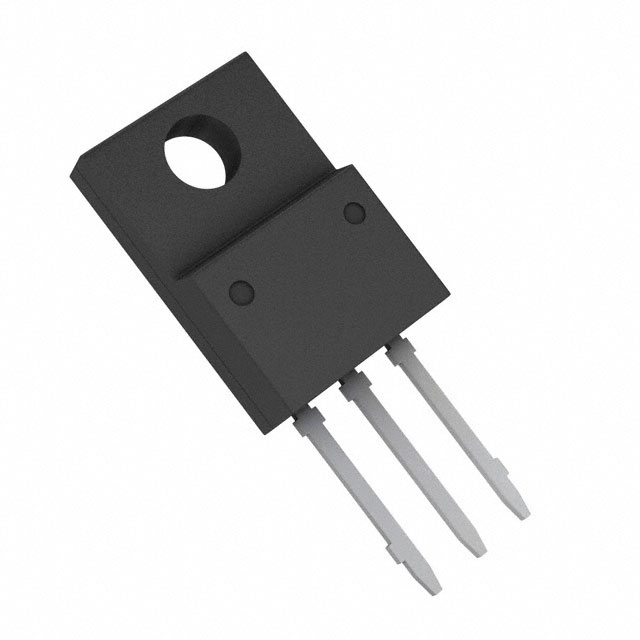

BA17810CP-E2

Active

Rohm Semiconductor

STANDARD REGULATOR POS 10V 1A 3-PIN(3+TAB) TO-220CP T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBA17810CP-E2 Flammability TO220CP-3 Taping Spec

BA17810CP-E2

Active

Rohm Semiconductor

STANDARD REGULATOR POS 10V 1A 3-PIN(3+TAB) TO-220CP T/R

Deep-Dive with AI

DocumentsBA17810CP-E2 Flammability TO220CP-3 Taping Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BA17810CP-E2

Current - Output	1 A
Current - Quiescent (Iq)	4.5 mA
Current - Supply (Max) [Max]	6 mA
Mounting Type	Through Hole
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	TO-220-3 Cropped Leads
PSRR	64 dB
Supplier Device Package	TO-220CP-3
Voltage - Input (Max) [Max]	25 V
Voltage - Output (Min/Fixed)	10 V
Voltage Dropout (Max) [Max]	2 V

BA17810 Series

Part	Output Type	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Voltage Dropout (Max) [Max]	Package / Case	Number of Regulators	PSRR	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Input (Max) [Max]	Current - Output	Current - Supply (Max) [Max]	Mounting Type	Output Configuration
Rohm Semiconductor BA17810T	1.81 mOhm	4.5 mA	10 V	2 V	TO-220-3 Full Pack	1	64 dB	85 °C	-40 °C	TO-220FP	25 V	1 A	6 mA	Through Hole	Positive
Rohm Semiconductor BA17810FP-E2	1.81 mOhm	4.5 mA	10 V	2 V	DPAK (2 Leads + Tab) SC-63 TO-252-3	1	64 dB	85 °C	-40 °C	TO-252	25 V	1 A	6 mA	Surface Mount	Positive
Rohm Semiconductor BA17810CP-E2	1.81 mOhm	4.5 mA	10 V	2 V	TO-220-3 Cropped Leads	1	64 dB	85 °C	-40 °C	TO-220CP-3	25 V	1 A	6 mA	Through Hole	Positive
