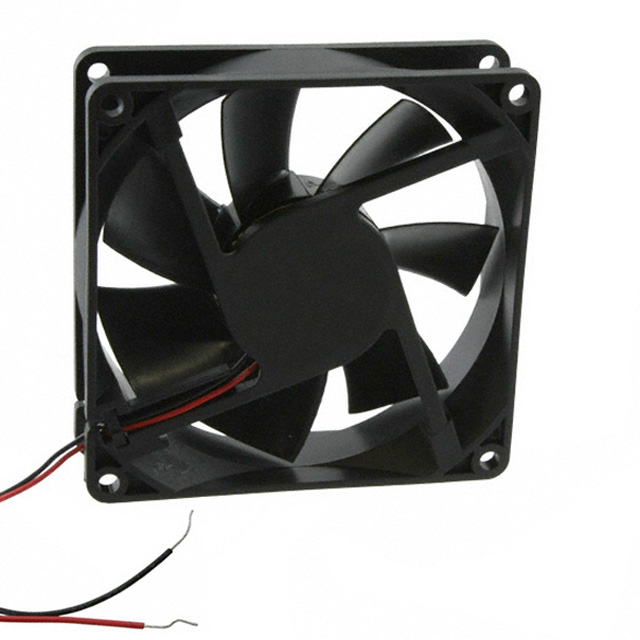

AUB0912VH-CIT

Obsolete

Delta Electronics

FAN AXIAL 92X25.4MM 12VDC

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 92X25.4MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Part	Width [y]	RPM	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Fan Type	Material - Frame	Power (Watts)	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Termination	Voltage - Rated	Weight	Weight	Material - Blade	Approval Agency	Current Rating (Amps)	Bearing Type	Noise	Air Flow	Air Flow	Features
Delta Electronics AUB0912H-A	25.4 mm	2800 RPM	0.191 in H2O	47.6 Pa	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	Plastic	2.52 W	5 VDC	13.8 VDC	50000 Hrs	2 Wire Leads	12 VDC	121.11 g	0.267 lb	Plastic	CE CSA UL VDE	0.21 A	Superflo	37 dB	59.9 CFM	1.68 mł/min
Delta Electronics AUB0912M-C	25.4 mm	2400 RPM			-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	Plastic		7 V	13.8 VDC	50000 Hrs	2 Wire Leads	12 VDC	104.78 g	0.231 lb	Plastic	CE CSA UL VDE	0.17 A	Superflo	33 dB(A)	46.9 CFM	1.31 mł/min
Delta Electronics AUB0912VH-CIT	25.4 mm	3600 RPM	0.287 in H2O	71.5 Pa	-10 °C	-10 °C	60 °C	60 °C	Tubeaxial	Plastic	4.8 W	7 V	13.8 VDC	50000 Hrs	2 Wire Leads	12 VDC	104.78 g	0.231 lb	Plastic	CE CSA UL VDE	400 mA	Superflo	45 dB(A)	72 CFM	2.02 mł/min
Delta Electronics AUB0912VH-AF00	10 mm								Tubeaxial	Plastic					3 Wire Leads	12 VDC			Plastic	CE CSA UL VDE		Superflo				Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 92mm L x 92mm H Superflo 72.0 CFM (2.02m³/min) 2 Wire Leads

Technical documentation and resources
