09407030951
ActiveHARTING Technology Group

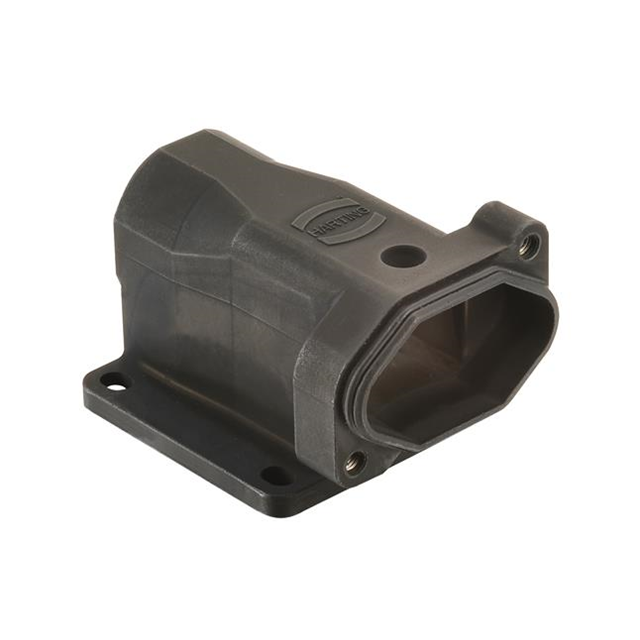

3A HPR ANGLED BULKHEAD HOUSING - LONG CONSTRUCTION, SCREW LOCKING, EPOXY POWDER, (W/ FIXING SCREW THROUGH HOLES)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
09407030951
ActiveHARTING Technology Group
3A HPR ANGLED BULKHEAD HOUSING - LONG CONSTRUCTION, SCREW LOCKING, EPOXY POWDER, (W/ FIXING SCREW THROUGH HOLES)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09407030951 |
|---|---|
| Connector Type | Base - Panel Mount 90° |
| Housing Color | Black |
| Housing Finish | Powder Coated |
| Housing Material | Zinc, Die Cast |
| Lock Location | Screw Locks on Hood |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 3 A |
| Style | Side Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09407030 Series
Base - Panel Mount 90° Connector Side Entry 3A IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
