C3CES-2036M

Active

CW Industries

IDC CABLE - CKC20S/AE20M/CCE20S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKC20S/AE20M/CCE20S

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Number of Rows	Usage	Color	Number of Positions	Features	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Pitch - Cable	Pitch - Cable	Shielding	Contact Finish	Length	Length	Length
CW Industries C3CES-2036M	IDC	2	Board In	Multiple Ribbon	20	Polarizing Key	3 ft	914.4 mm	0.1 in	2.54 mm	Socket to Card Edge	2.54 µm	100 µin	0.05 "	1.27 mm	Unshielded	Tin
CW Industries C3CES-2618G	IDC	2	Board In		26	Polarizing Key	1.5 ft	457.2 mm	0.1 in	2.54 mm	Socket to Card Edge	2.54 µm	100 µin	0.05 "	1.27 mm	Unshielded	Tin
CW Industries C3CES-2636M	IDC	2	Board In	Multiple Ribbon	26	Polarizing Key	3 ft	914.4 mm	0.1 in	2.54 mm	Socket to Card Edge	2.54 µm	100 µin	0.05 "	1.27 mm	Unshielded	Tin
CW Industries C3CES-2006G	IDC	2	Board In		20	Polarizing Key			0.1 in	2.54 mm	Socket to Card Edge	2.54 µm	100 µin	0.05 "	1.27 mm	Unshielded	Tin	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

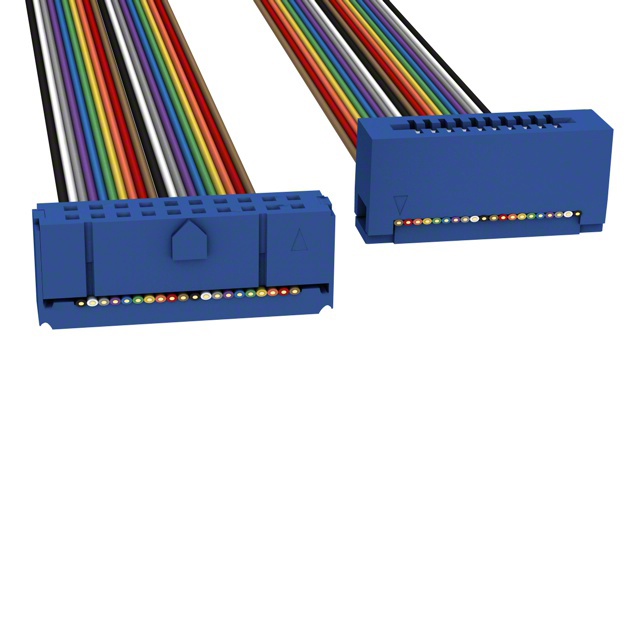

20 Position Cable Assembly Rectangular Socket to Card Edge 3.00' (914.40mm)
