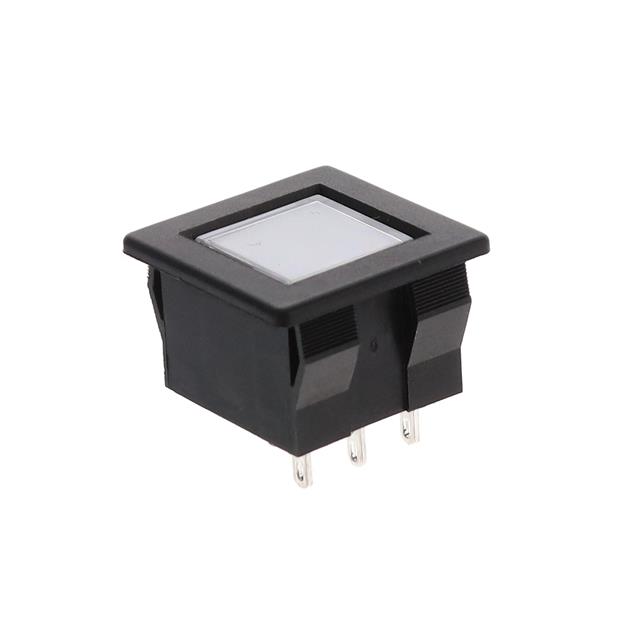

ULP12OAM1QPMCL1REDYEL

Active

E-Switch

SWITCH PUSHBUTTON SPDT 0.5A 250V

Deep-Dive with AI

Search across all available documentation for this part.

ULP12OAM1QPMCL1REDYEL

Active

E-Switch

SWITCH PUSHBUTTON SPDT 0.5A 250V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ULP12OAM1QPMCL1REDYEL

Actuator Marking	No Marking
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	500 mA, 200 mA
Electrical Life	200000 Cycles
Features	Tactile Feedback
Illumination Type, Color	LED, Red/Yellow
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	17.7 mm
Panel Cutout Dimensions [y]	15.8 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Illuminated, Standard
Voltage Rating - AC	250 V
Voltage Rating - DC	25 V

ULP12 Series

Part	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Marking	Type	Current Rating (Amps)	Color - Actuator/Cap	Mechanical Life	Voltage Rating - AC	Termination Style	Mounting Type	Actuator Type	Voltage Rating - DC	Switch Function	Features	Electrical Life	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Type, Color
E-Switch ULP12OAP1RSSCL1NILNIL	SPDT	-20 C	70 °C	No Marking	Standard	0.4 VA	Clear	1000000 Cycles	28 V	PC Pin	Through Hole	Button Square	28 V	On-Mom	Tactile Feedback	200000 Cycles
E-Switch ULP12OAM1QPMCL1GRNNIL	SPDT	-20 C	70 °C	No Marking	Illuminated Standard	200 mA 500 mA	Clear	1000000 Cycles	250 V	Solder Lug	Panel Mount Snap-In		25 V	On-Mom	Tactile Feedback	200000 Cycles	15.8 mm	17.7 mm	Green LED
E-Switch ULP12OAP1RSSOP1NILNIL	SPDT	-20 C	70 °C	No Marking	Standard	0.4 VA	Black	1000000 Cycles	28 V	PC Pin	Through Hole	Button Square	28 V	On-Mom	Tactile Feedback	200000 Cycles
E-Switch ULP12EEP1QSSCL1REDNIL	SPDT	-20 C	70 °C	No Marking	Illuminated Standard	200 mA 500 mA	Clear	1000000 Cycles	250 V	PC Pin	Through Hole	Button Square	25 V	On-On	Tactile Feedback	200000 Cycles			LED Red
E-Switch ULP12OAM1QPMCL1REDGRN	SPDT	-20 C	70 °C	No Marking	Illuminated Standard	200 mA 500 mA	Clear	1000000 Cycles	250 V	Solder Lug	Panel Mount Snap-In		25 V	On-Mom	Tactile Feedback	200000 Cycles	15.8 mm	17.7 mm	Green/Red LED
E-Switch ULP12OAP1RRFCL1BLUBLU	SPDT	-20 C	70 °C	No Marking	Illuminated Standard	0.4 VA	Clear	1000000 Cycles	28 V	PC Pin	Through Hole	Rectangular Button	28 V	On-Mom	Tactile Feedback	200000 Cycles			Blue/Blue LED
E-Switch ULP12OAM1QPMCL1REDYEL	SPDT	-20 C	70 °C	No Marking	Illuminated Standard	200 mA 500 mA	Clear	1000000 Cycles	250 V	Solder Lug	Panel Mount Snap-In		25 V	On-Mom	Tactile Feedback	200000 Cycles	15.8 mm	17.7 mm	LED Red/Yellow
E-Switch ULP12OAM1RPMCL1BLURED	SPDT	-20 C	70 °C	No Marking	Illuminated Standard	0.4 VA	Clear	1000000 Cycles	28 V	Solder Lug	Panel Mount Snap-In		28 V	On-Mom	Tactile Feedback	200000 Cycles	15.8 mm	17.7 mm	Blue/Red LED
E-Switch ULP12EEP1QSSCL1REDGRN	SPDT	-20 C	70 °C	No Marking	Illuminated Standard	200 mA 500 mA	Clear	1000000 Cycles	250 V	PC Pin	Through Hole	Button Square	25 V	On-On	Tactile Feedback	200000 Cycles			Green/Red LED
E-Switch ULP12OAP1QSSCL1GRNNIL	SPDT	-20 C	70 °C	No Marking	Illuminated Standard	200 mA 500 mA	Clear	1000000 Cycles	250 V	PC Pin	Through Hole	Button Square	25 V	On-Mom	Tactile Feedback	200000 Cycles			Green LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.14
		10	$ 5.52
		25	$ 5.26
		90	$ 4.98

Description

General part information

ULP12 Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
