ACZ11BR1E-15KQD1-20C
ActiveCUI Devices

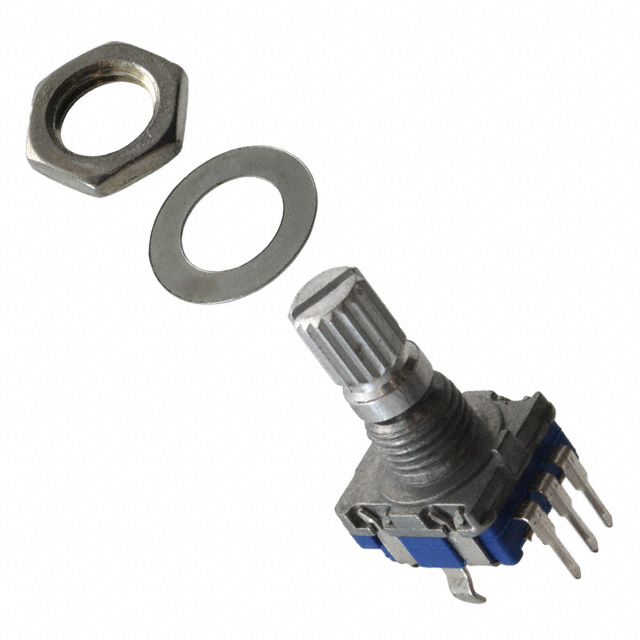

MECHANICAL ENCODER ROTARY INCREMENTAL KNURL 0.02N.M STRAIGHT QUADRATURE DIGITAL SQUARE WAVE 20PPR THROUGH HOLE PC PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACZ11BR1E-15KQD1-20C
ActiveCUI Devices
MECHANICAL ENCODER ROTARY INCREMENTAL KNURL 0.02N.M STRAIGHT QUADRATURE DIGITAL SQUARE WAVE 20PPR THROUGH HOLE PC PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACZ11BR1E-15KQD1-20C |
|---|---|
| Actuator Type | Knurled End |
| Actuator Type [diameter] | 6 mm |
| Built in Switch | True |
| Detent | True |
| Encoder Type | Incremental |
| Mounting Type | PCB Through Hole, Panel |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 20 |
| Rotational Life (Cycles Min) [Min] | 30K |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 3.79 | |
| 5 | $ 3.19 | |||
| 10 | $ 2.97 | |||
| 25 | $ 2.69 | |||
| 50 | $ 2.50 | |||
| 100 | $ 2.32 | |||
| 300 | $ 2.06 | |||
| 500 | $ 1.95 | |||
| 1000 | $ 1.81 | |||
Description
General part information
ACZ11BR1 Series
Rotary Encoder Incremental 20 Quadrature (Incremental) Vertical
