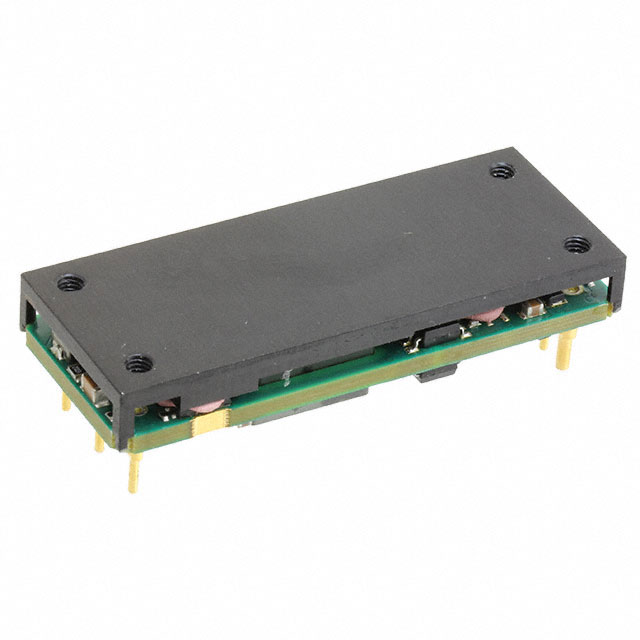

UEE-12/12.5-D48NBH-C

Active

Murata Power Solutions Inc.

DC DC CONVERTER 12V 150W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 12V 150W

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Features	Efficiency	Voltage - Output 1	Current - Output (Max) [Max]	Type	Number of Outputs	Applications	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Power (Watts)	Mounting Type
Murata Power Solutions Inc. UEE-12/12.5-D48NB-C	22.9 mm	58.4 mm	12.7 mm	0.5 in	2.3 in	0.9 "	2250 VDC	OCP OTP Remote On/Off SCP UVLO	93 %	12 V	12.5 A	Isolated Module	1	ITE (Commercial)	Active Low Enable	85 °C	-40 °C	75 V	36 V	8-DIP Module	150 W	Through Hole
Murata Power Solutions Inc. UEE-12/12.5-D48PM-C	22.9 mm	58.4 mm	10.7 mm	0.42 in	2.3 in	0.9 "	2250 VDC	OCP OTP OVP Remote On/Off SCP UVLO	93 %	12 V	12.5 A	Isolated Module	1	ITE (Commercial)	Active High Enable	85 °C	-40 °C	75 V	36 V	1/8 Brick 8-SMD Module	150 W	Surface Mount
Murata Power Solutions Inc. UEE-12/12.5-D48NBH-C	22.9 mm	58.4 mm	12.7 mm	0.5 in	2.3 in	0.9 "	2250 VDC		93 %	12 V	12.5 A	Isolated Module	1	ITE (Commercial)		85 °C	-40 °C	75 V	36 V	Eighth Brick	150 W	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12V 12.5A 36V - 75V Input
