Q-35013000R108I
ActiveAmphenol Custom Cable

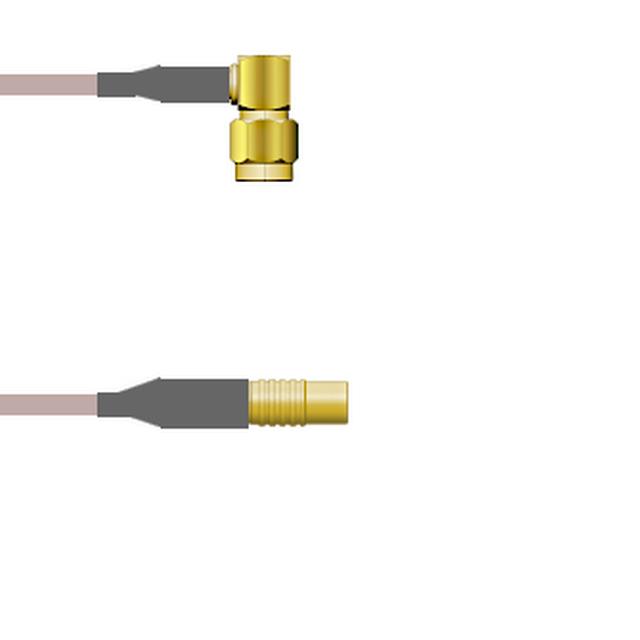

CBL ASSY SMA-MCX PLUG-SCKT 9'
Deep-Dive with AI
Search across all available documentation for this part.
Q-35013000R108I
ActiveAmphenol Custom Cable
CBL ASSY SMA-MCX PLUG-SCKT 9'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-35013000R108I |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MCX Socket |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 DS |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 2.7 m |
| Length | 9 ft |
| Length | 108 in |
| Overall Impedance | 50 Ohms |
| Style | SMA to MCX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 364.96 | |
| 25 | $ 357.72 | |||
| 50 | $ 350.48 | |||
| 100 | $ 343.24 | |||
| 250 | $ 335.99 | |||
Description
General part information
Q-350130 Series
Cable Assembly Coaxial SMA to MCX RG-316 DS 108.0" (2.7m) 9.0'
Documents
Technical documentation and resources
No documents available
