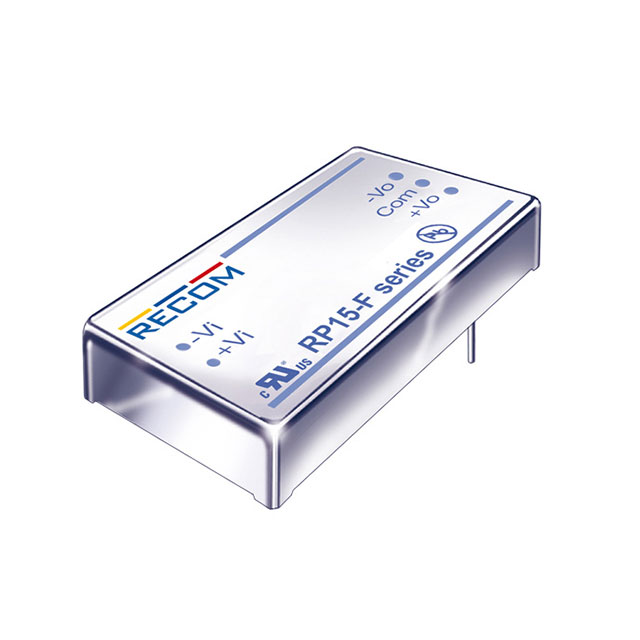

RP15-1212SF/N-HC

Active

RECOM Power

15W DC/DC-CONVERTER POWERLINE 2"X1" 1.6KV REG 2:1 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RP15-1212SF/N-HC

Active

RECOM Power

15W DC/DC-CONVERTER POWERLINE 2"X1" 1.6KV REG 2:1 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP15-1212SF/N-HC

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	1.25 A
Efficiency	86 %
Features	OVP, OCP, Remote On/Off, SCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	15 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	12 V

RP15-243.3 Series

Isolated DC/DC Converters - Through Hole 15W DC/DC 1.6kV REG 4:1 9-36in +/-15out

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Voltage - Isolation	Features	Voltage - Output 2	Control Features	Number of Outputs	Current - Output (Max)	Current - Output (Max)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Voltage - Input (Max) [Max]	Power (Watts)	Voltage - Output 1	Mounting Type	Efficiency	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]
RECOM Power RP15-4805DAW/N	85 °C	-40 °C	Isolated Module	6-DIP Module	1.6 kV	OCP OVP Remote On/Off SCP	-5 V	Active Low Enable	2	1.5 A	1.5 A	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial)	75 V	15 W	5 V	Through Hole	85 %	18 V
RECOM Power RP15-243.3SFW-HC	65 °C	-40 °C	Isolated Module	6-DIP Module	1.6 kV	OCP OVP SCP			1			25.4 mm	2 in	0.4 "	25.4 mm	50.8 mm	10.2 mm	ITE (Commercial)	36 V	15 W	3.3 V	Through Hole	84 %	9 V	4.5 A
RECOM Power RP15-4805SA/P	85 °C	-40 °C	Isolated Module	6-DIP Module 4 Leads	1.6 kV	OCP OVP Remote On/Off SCP		Active High Enable	1			25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial)	75 V	15 W	5 V	Through Hole	88 %	36 V	3 A
RECOM Power RP15-4805DF	85 °C	-40 °C	Isolated Module	6-DIP Module	1.6 kV	OCP OVP SCP	-5 V		2	1.5 A	1.5 A	25.4 mm	2 in	0.4 "	25.4 mm	50.8 mm	10.2 mm	ITE (Commercial)	75 V	15 W	5 V	Through Hole	85 %	36 V
RECOM Power RP15-1212DA/N	85 °C	-40 °C	Isolated Module	6-DIP Module 4 Leads	1.6 kV	OCP OVP Remote On/Off SCP	-12 V	Active Low Enable	2	625 mA	625 mA	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial)	18 V	15 W	12 V	Through Hole	87 %	9 V
RECOM Power RP15-4805SF/P-HC	85 °C	-40 °C	Isolated Module	6-DIP Module	1.6 kV	OCP OVP Remote On/Off SCP		Active High Enable	1			25.4 mm	2 in	0.4 "	25.4 mm	50.8 mm	10.2 mm	ITE (Commercial)	75 V	15 W	5 V	Through Hole	83 %	36 V	3 A
RECOM Power RP15-243.3SAW	85 °C	-40 °C	Isolated Module	6-DIP Module 4 Leads	1.6 kV	OCP OVP SCP			1			25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial)	36 V	15 W	3.3 V	Through Hole	86 %	9 V	4 A
RECOM Power RP15-2405DA/N-HC	85 °C	-40 °C	Isolated Module	6-DIP Module 4 Leads	1.6 kV	OCP OVP Remote On/Off SCP	-5 V	Active Low Enable	2	1.5 A	1.5 A	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial)	36 V	15 W	5 V	Through Hole	85 %	18 V
RECOM Power RP15-4805SA/P-HC	85 °C	-40 °C	Isolated Module	6-DIP Module 4 Leads	1.6 kV	OCP OVP Remote On/Off SCP		Active High Enable	1			25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	ITE (Commercial)	75 V	15 W	5 V	Through Hole	88 %	36 V	3 A
RECOM Power RP15-1212SF/N-HC	85 °C	-40 °C	Isolated Module	6-DIP Module	1.6 kV	OCP OVP Remote On/Off SCP		Active Low Enable	1			25.4 mm	2 in	0.4 "	25.4 mm	50.8 mm	10.2 mm	ITE (Commercial)	18 V	15 W	12 V	Through Hole	86 %	9 V	1.25 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	20	$ 71.17
Newark	Each	1	$ 88.14
		25	$ 84.12
		50	$ 81.88
		100	$ 79.19
		250	$ 76.51

Description

General part information

RP15-243.3 Series

Isolated DC/DC Converters - Through Hole 15W DC/DC 1.6kV REG 4:1 9-36in +/-15out
