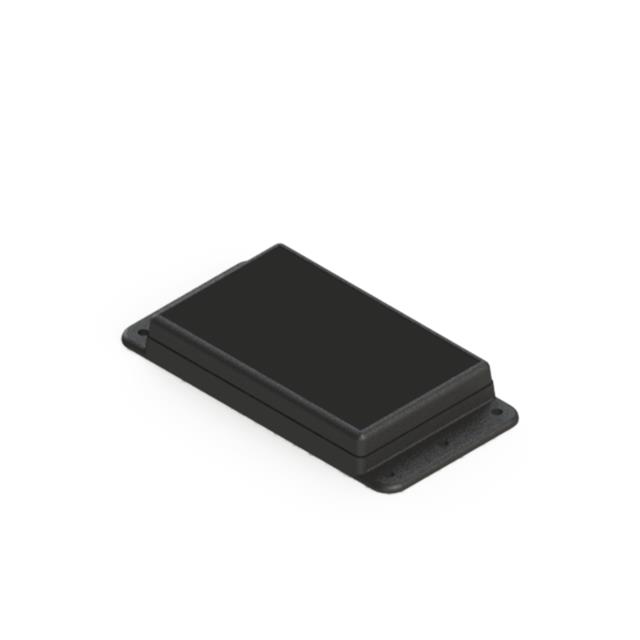

WM010I,BK

Active

Serpac

PLASTIC ENCLOSURE, WM SERIES, SURFACE MOUNT, WALL MOUNT, PLASTIC, 15.24 MM, 59 MM, 117 MM, IP40

Search across all available documentation for this part.

Active

Serpac

PLASTIC ENCLOSURE, WM SERIES, SURFACE MOUNT, WALL MOUNT, PLASTIC, 15.24 MM, 59 MM, 117 MM, IP40

Technical Specifications

Parameters and characteristics for this part

Specification	WM010I,BK

Area (L x W)	52.3 cm²
Area (L x W)	8.1 in²
Color	Black
Container Type	Box
Design	Cover Included
Features	PCB Supports, Wall Mount, Mounting Flange
Height [z]	15.24 mm
Height [z]	0.6 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	91.44 mm
Size / Dimension [x]	3.6 in
Size / Dimension [y]	57.15 mm
Size / Dimension [y]	2.25 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.086 lb
Weight	39.01 g

Part	Height [z]	Height [z]	Design	Container Type	Weight	Weight	Thickness	Thickness	Ratings	Material Flammability Rating	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material	Area (L x W)	Area (L x W)	Features	Area (L x W) [custom]	Area (L x W) [custom]
Serpac WM010I,BK	15.24 mm	0.6 in	Cover Included	Box	0.086 lb	39.01 g	2.54 mm	0.1 in	IP40 NEMA 1	UL94 HB	Black	91.44 mm	57.15 mm	3.6 in	2.25 in	Plastic ABS	52.3 cm²	8.1 in²	Mounting Flange PCB Supports Wall Mount
Serpac WM010RI,AL	15.24 mm	0.6 in	Cover Included	Box	0.086 lb	39.01 g	2.54 mm	0.1 in	IP40 NEMA 1	UL94 HB	Almond	91.44 mm	57.66 mm	3.6 in	2.27 in	Plastic ABS			Front Access Mounting Flange PCB Supports Wall Mount	52.7 cm²	8.17 in²
Serpac WM010I,GY	15.24 mm	0.6 in	Cover Included	Box	0.086 lb	39.01 g	2.54 mm	0.1 in	IP40 NEMA 1	UL94 HB	Gray	91.44 mm	57.15 mm	3.6 in	2.25 in	Plastic ABS	52.3 cm²	8.1 in²	Mounting Flange PCB Supports Wall Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Cover Included 3.600" L x 2.250" W (91.44mm x 57.15mm) X 0.600" (15.24mm)
